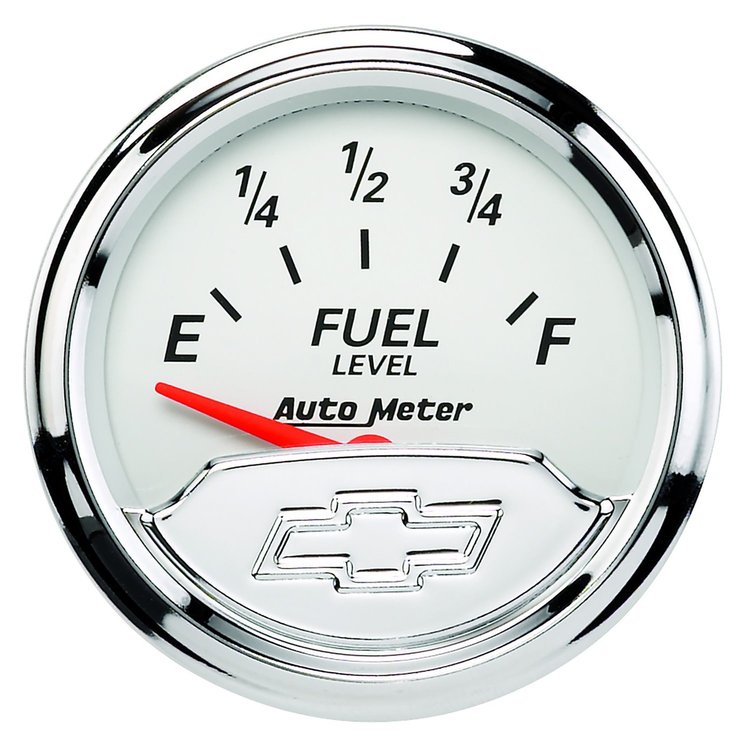

Lowest Price Guarantee- Chevy Vintage
- Fuel Level Gauge
- 2 in. 240 Ohms Empty
- 33 Ohms Full
- Short Sweep
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Works with 240E/33F ohm senders, including AutoMeter 3262
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60"s to mid 90"s), 0-30 ohm (early GM), 73-10 ohm (pre 90"s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Part TypeGauge
BrandAUTO METER
Package Height4.5
Package Width4.5
Package Length4.75
Weight0.5 PG
Part CategoryPerformance Parts
Bezel ColorChrome
Pointer ColorFluorescent Red
Size2.063 in (52.4 mm)
Bezel StyleStreet Rod
Lighting TypeIncandescent
Part FitmentUniversal
Lighting ColorWhite Incandescent
Dial (Face Color)White
Vendor Part Number1317-00408
Package Qty1
Package TypeEA
