Vehicle Info NeededAUTO METERPART NUMBER: 105-1403

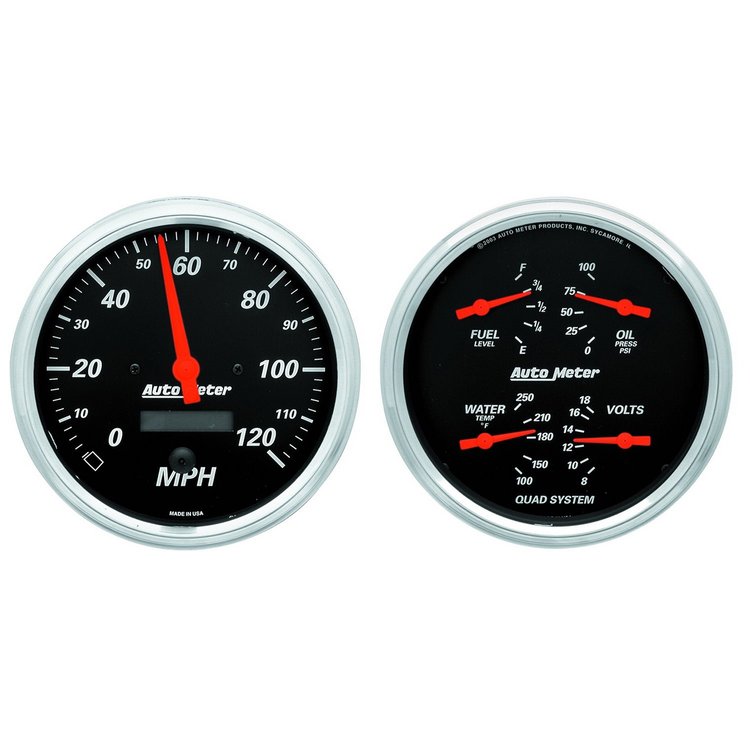

Designer Black Quad Gauge Kit 5" Electrical
$54599
Ships on 09/08/2026
Lowest Price Guarantee4-Gauge Kit
- Designer Black Quad Gauge Kit
- 5'' Electrical
- Quad Gauge (Fuel, Oil Pressure, Water Temp, Volts)
- Speedometer (120 mph)
- Traditional incandescent lighting illuminates around the perimeter of the dial
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8" NPT temperature sender and a 1/8" NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter's 3262 fuel level sender).
Part TypeGauge
BrandAUTO METER
Package Height4.8
Package Width9.0
Package Length17.7
Weight4.7 PG
Part CategoryPerformance Parts
Warning Lights IncludedNo
Gauge Face ColorBlack
Bezel ColorChrome
Size5 in (127 mm)
Fuel Pressure Gauge IncludedNo
Water Temperature Gauge IncludedYes
Clock IncludedNo
Brake Bias Gauge IncludedNo
Bezel FinishSilver
Boost Gauge IncludedNo
Ammeter Gauge IncludedNo
Mounting Bracket IncludedNo
Gauge StyleAuto Meter Designer Black
Gauge Number ColorWhite
Voltage Gauge IncludedYes
Oil Temperature Gauge IncludedNo
Transmission Temperature Gauge IncludedNo
Lighting TypeIncandescent
Bezel StyleStreet Rod
QuantitySold as a kit
Fuel Level Gauge IncludedYes
Dial (Face Color)Black
Pyrometer Gauge IncludedNo
Tachometer Gauge IncludedNo
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Speedometer Gauge IncludedYes
Oil Pressure Gauge IncludedYes
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number1403
Package Qty1
Package TypeEA
