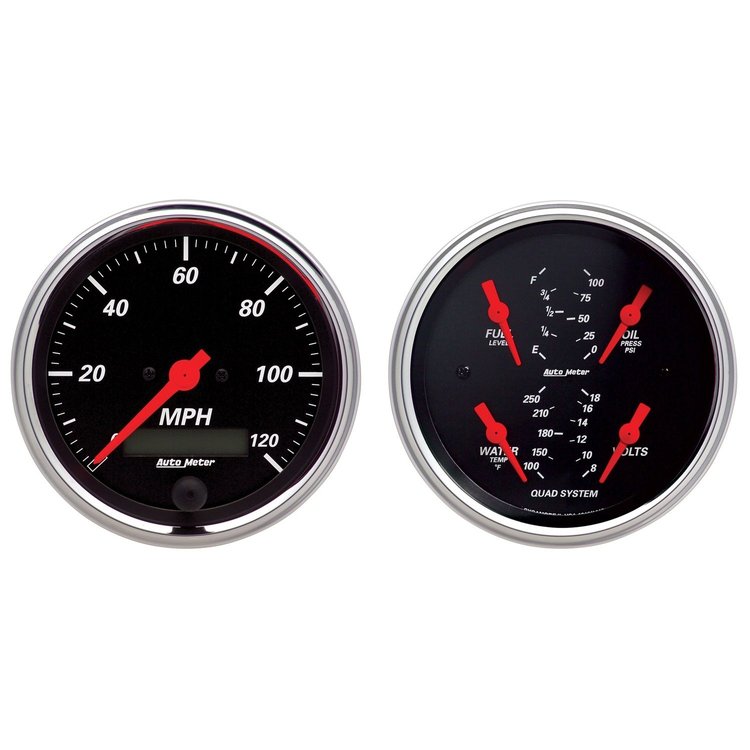

Vehicle Info NeededDesigner Black Quad Gauge Kit 3-3/8" Electrical
Size :
Ships on 09/08/2026
Lowest Price Guarantee- Designer Black Quad Gauge Kit
- 3-3/8'' Electrical
- Quad Gauge (Fuel, Oil Pressure, Water Temp, Volts)
- Speedometer (120 mph)
- Traditional incandescent lighting illuminates around the perimeter of the dial
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8" NPT temperature sender and a 1/8" NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter's 3262 fuel level sender).
Black Face With Chrome Trim Ring
Auto Meter Designer Black Gauges feature a unique domed lens that delivers the appearance of a factory-style gauge cluster lens. Designer black gauges have traditional incandescent lighting that illuminates around the perimeter of the dial and has a black face with a chrome trim ring that can accommodate any interior. Race-proven air-core instruments provide quick and accurate readings and can withstand the rigors of competition use. Designer black gauges are available in the most popular sizes and readings.
