Vehicle Info NeededAUTO METERPART NUMBER: 105-1420

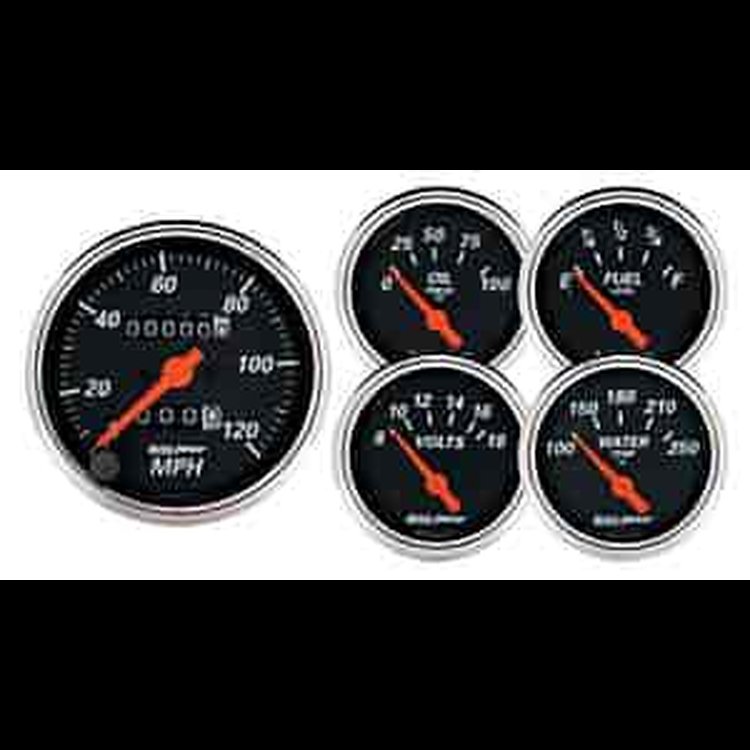

Designer Black 5-Gauge Kit 3-1/8" Mechanical Speedometer (120 mph)
Size :
$35899
Ships on 09/10/2026
Lowest Price Guarantee5-Gauge Kits
- Designer Black 5-Gauge Kit
- 3-1/8'' Mechanical Speedometer (120 mph)
- 2-1/16'' Fuel Level (240-33 ohms)
- 2-1/16'' Oil Pressure (0-100 psi)
- 2-1/16'' Water Temperature (100°-250° F)
- 2-1/16'' Voltmeter (8-18 volts)
Kit Part Numbers - Mechanical Speedometer #105-1476
- Electrical Fuel Level Gauge #105-1424
- Electrical Oil Pressure Gauge #105-1426
- Electrical Water Temperature Gauge #105-1436
- Electrical Voltmeter #105-1483
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
- Speedometer features a traditional rolling drum odometer and a resetable tripmeter
- Speedometer accepts a 5/8" x 18 thread speedometer cable and is calibrated for 60 MPH at 1,000 cable RPM
AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter. All senders included where applicable.
Black Face With Chrome Trim Ring
Auto Meter Designer Black Gauges feature a unique domed lens that delivers the appearance of a factory-style gauge cluster lens. Designer black gauges have traditional incandescent lighting that illuminates around the perimeter of the dial and has a black face with a chrome trim ring that can accommodate any interior. Race-proven air-core instruments provide quick and accurate readings and can withstand the rigors of competition use. Designer black gauges are available in the most popular sizes and readings.
Part TypeGauge
Product LineAuto Meter Designer Black Gauges
BrandAUTO METER
Package Height4.6
Package Width8.8
Package Length17.6
Weight4.54 PG
Part CategoryPerformance Parts
Warning Lights IncludedNo
Gauge Face ColorBlack
Bezel ColorChrome
SizeN/A
Fuel Pressure Gauge IncludedNo
Water Temperature Gauge IncludedYes
Clock IncludedNo
Brake Bias Gauge IncludedNo
Bezel FinishBlack chrome
Boost Gauge IncludedNo
Ammeter Gauge IncludedNo
Mounting Bracket IncludedYes
Gauge StyleAuto Meter Designer Black
Gauge Number ColorWhite
Voltage Gauge IncludedYes
Oil Temperature Gauge IncludedNo
Transmission Temperature Gauge IncludedNo
Lighting TypeIncandescent
Bezel StyleStreet Rod
QuantitySold as a kit
Fuel Level Gauge IncludedYes
Dial (Face Color)Black
Pyrometer Gauge IncludedNo
Tachometer Gauge IncludedNo
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Speedometer Gauge IncludedYes
Oil Pressure Gauge IncludedYes
Part FitmentSemi Universal
Lighting ColorWhite Incandescent
Vendor Part Number1420
Package Qty1
Package TypeEA
