Vehicle Info NeededAUTO METERPART NUMBER: 105-1425

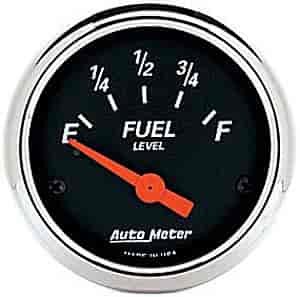

Designer Black Fuel Level Gauge 2-1/16" Electrical
$5759
5 left in stock
Ships on Sep 08, 2026
Lowest Price GuaranteeFuel Level
- Designer Black Fuel Level Gauge
- 2-1/16'' Electrical
- 0-30 ohms (For most pre-1965 GM)
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Works with most Pre-1965 Chevrolet/GM senders
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60"s to mid 90"s), 0-30 ohm (early GM), 73-10 ohm (pre 90"s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Part TypeGauge
BrandAUTO METER
Package Height4.5
Package Width4.6
Package Length5.1
Weight0.45 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Gauge Size (Mm)52.40 diameter
Gauge Face ColorBlack
Bezel ColorChrome
Sweep90 degree sweep
Size2.063 in (52.4 mm)
Bezel FinishBlack chrome
Gauge StyleAuto Meter Designer Black
Gauge Number ColorWhite
Gauge RangeEmpty-full
Sender Ohm Range0 ohms empty, 30 ohms full
Lighting TypeIncandescent
Gauge TypeFuel Level
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleStreet Rod
QuantitySold individually
Dial (Face Color)Black
Gauge Size (In.)2 1/16 diameter
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number1425
Package Qty1
Package TypeEA
