Vehicle Info NeededAUTO METERPART NUMBER: 105-1504

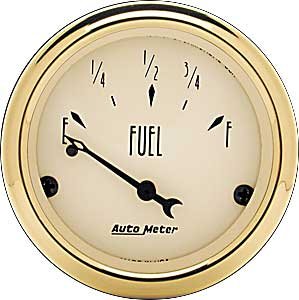

Golden Oldies Fuel Level Gauge 2-1/16" Electrical
Size :
$7070
Ships on 09/15/2026
Lowest Price Guarantee2-1/16"
- Golden Oldies Fuel Level Gauge
- 2-1/16'' Electrical
- 0-90 ohms (For most 1965-97 GM)
Will not work on some 1998-Up vehicles with 40-250 ohm senders - Traditional incandescent lighting illuminates around the perimeter of the dial
- Works with most 1965 to 1997 Chevrolet/GM senders
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60"s to mid 90"s), 0-30 ohm (early GM), 73-10 ohm (pre 90"s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Sold separately in two diameters or as kits, these gauges feature vintage-style domed lenses, beige faces, black accents, and gold bezels. Red and green light bulb covers included for customization.
Click below to see other Street Rod Gauges:
Show More
Part TypeGauge
Product LineAuto Meter Golden Oldies Gauges
BrandAUTO METER
Package Height4.5
Package Width4.7
Package Length4.7
Weight0.5 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Gauge Size (Mm)52.40 diameter
Gauge Face ColorBeige
Bezel ColorGold
Sweep90 degree sweep
Size2.063 in (52.4 mm)
Bezel FinishGold
Gauge StyleAuto Meter Golden Oldies
Gauge Number ColorBlack
Gauge RangeEmpty-full
Sender Ohm Range0 ohms empty, 90 ohms full
Lighting TypeIncandescent
Gauge TypeFuel Level
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleStreet Rod
QuantitySold individually
Dial (Face Color)Beige
Gauge Size (In.)2 1/16 diameter
Pointer ColorBlack
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number1504
Package Qty1
Package TypeEA
