Vehicle Info NeededAUTO METERPART NUMBER: 105-1601

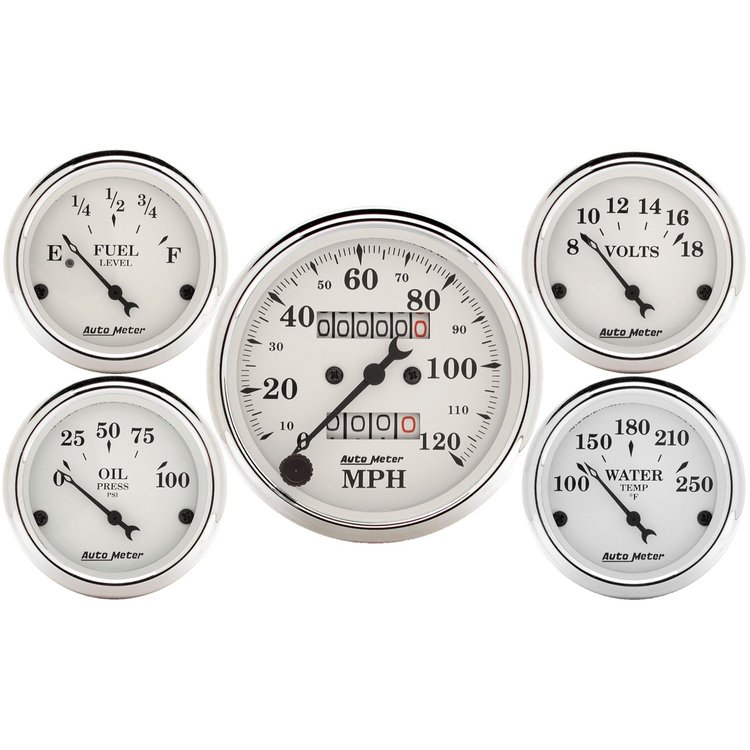

Old Tyme White 5-Gauge Kit 3-1/8" Mechanical Speedometer (120 mph)
Size :
$38249
Ships on 09/11/2026
Lowest Price Guarantee5-Gauge Kits
- Old Tyme White 5-Gauge Kit
- 3-1/8'' Mechanical Speedometer (120 mph)
- 2-1/16'' Fuel Level (240-33 ohms)
- 2-1/16'' Oil Pressure (0-100 psi)
- 2-1/16'' Water Temperature (100°-250° F)
- 2-1/16'' Voltmeter (8-18 volts)
Includes mounting hardware and gauge senders (speedometer cable not included)Kit Part Numbers - Mechanical Speedometer #105-1693
- Electrical Fuel Level Gauge #105-1606
- Electrical Oil Pressure Gauge #105-1628
- Electrical Water Temperature Gauge #105-1638
- Electrical Voltmeter #105-1692
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
- Speedometer features a traditional rolling drum odometer and a resetable tripmeter
- Speedometer accepts a 5/8" x 18 thread speedometer cable and is calibrated for 60 MPH at 1,000 cable RPM
AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter. All senders included where applicable.
Old Tyme White
Available in four diameters and as dual or quad gauges and kits, Old Tyme Gauges combine nostalgia with modern reliability. They have domed lenses, white faces, black accents, vintage-style pointers, and chrome bezels. Red and green lightbulb covers included for choice of illumination.
Click below to see other Street Rod Gauges:
Part TypeGauge
Product LineAuto Meter Old Tyme White Gauges
BrandAUTO METER
Package Height4.6
Package Width8.8
Package Length17.6
Weight4.6 PG
Part CategoryPerformance Parts
Warning Lights IncludedNo
Gauge Face ColorWhite
Bezel ColorChrome
SizeN/A
Fuel Pressure Gauge IncludedNo
Water Temperature Gauge IncludedYes
Clock IncludedNo
Brake Bias Gauge IncludedNo
Bezel FinishChrome
Boost Gauge IncludedNo
Ammeter Gauge IncludedNo
Mounting Bracket IncludedYes
Gauge StyleAuto Meter Old Tyme White
Gauge Number ColorBlack
Voltage Gauge IncludedYes
Oil Temperature Gauge IncludedNo
Transmission Temperature Gauge IncludedNo
Lighting TypeIncandescent
Bezel StyleStreet Rod
QuantitySold as a kit
Fuel Level Gauge IncludedYes
Dial (Face Color)White
Pyrometer Gauge IncludedNo
Tachometer Gauge IncludedNo
Pointer ColorBlack
Gauge SeriesAnalog
Speedometer Gauge IncludedYes
Oil Pressure Gauge IncludedYes
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number1601
Package Qty1
Package TypeEA
