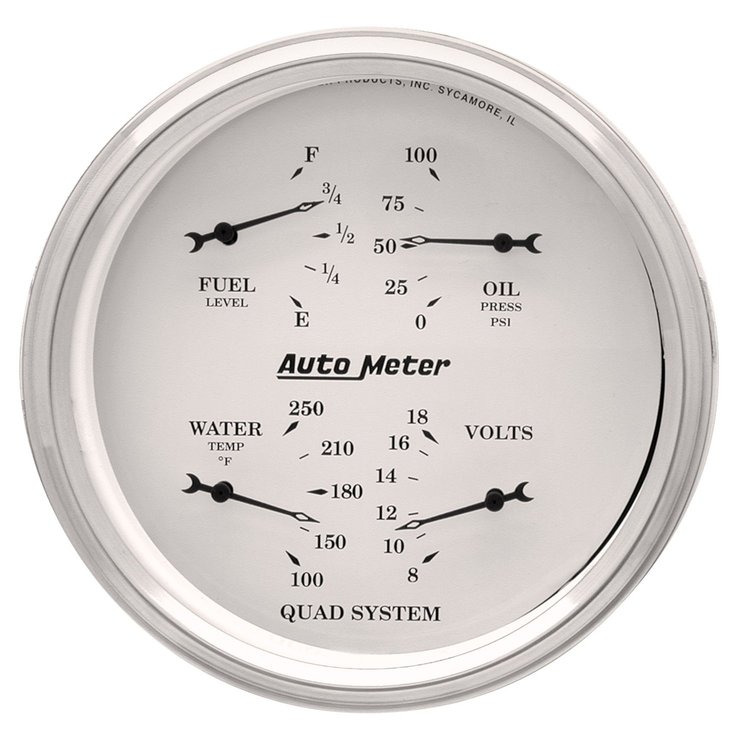

Vehicle Info NeededOld Tyme White Quad Gauge 5" Electrical
Size :
Ships on 09/08/2026
Lowest Price Guarantee- Old Tyme White Quad Gauge
- 5" Electrical
- Fuel Level (240-33 ohms)
- Oil Pressure (0-100 psi)
- Water Temperature (100°-250° F)
- Voltmeter (8-18 volts)
Includes 3/8", 1/4", and 1/2" NPT adapters/fittings - Traditional incandescent lighting illuminates around the perimeter of the dial
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- Gauge kit includes 1/8" NPT pressure sender, 1/4" NPT adapter, 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8" NPT temperature sender and a 1/8" NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter's 3262 fuel level sender).
Old Tyme White
Available in four diameters and as dual or quad gauges and kits, Old Tyme Gauges combine nostalgia with modern reliability. They have domed lenses, white faces, black accents, vintage-style pointers, and chrome bezels. Red and green lightbulb covers included for choice of illumination.
