Vehicle Info NeededAUTO METERPART NUMBER: 105-1901

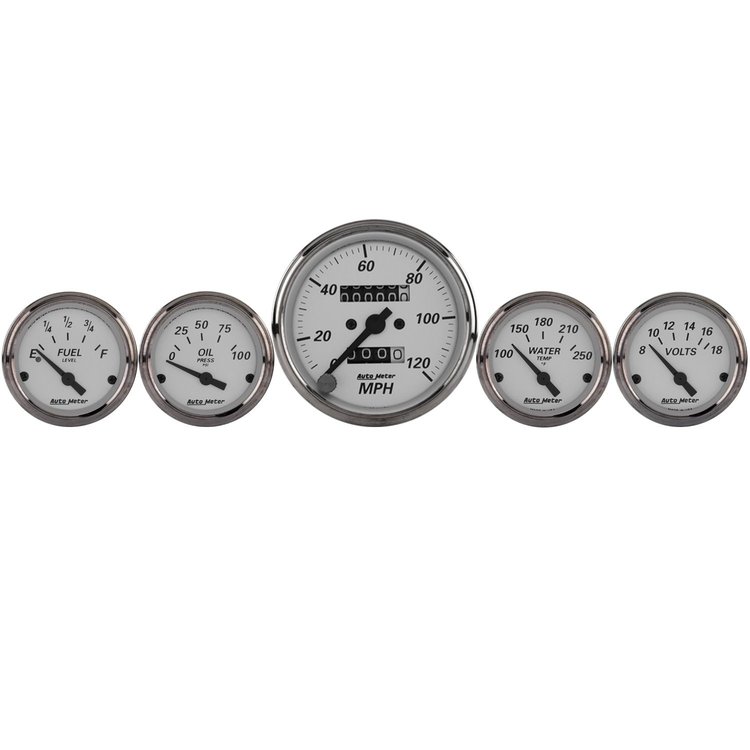

American Platinum 5-Gauge Kit 3-1/8" Mechanical Speedometer (120 mph)
$45343
Ships on Sep 11, 2026
Lowest Price GuaranteeKits
- American Platinum 5-Gauge Kit
- 3-1/8'' Mechanical Speedometer (120 mph)
- 2-1/16'' Fuel Level (240-33 ohms)
- 2-1/16'' Oil Pressure (0-100 psi)
- 2-1/16'' Water Temperature (100°-250° F)
- 2-1/16'' Voltmeter (8-18 volts)
- All 2-1/16" gauges in kit are electrical
- Includes mounting hardware and gauge senders (speedometer cable not included)
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
- Speedometer features a traditional rolling drum odometer and a resetable tripmeter
- Speedometer accepts a 5/8" x 18 thread speedometer cable and is calibrated for 60 MPH at 1,000 cable RPM
AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter. All senders included where applicable.
Part TypeGauge
BrandAUTO METER
Package Height4.5
Package Width8.8
Package Length17.7
Weight4.57 PG
Part CategoryPerformance Parts
Warning Lights IncludedNo
Gauge Face ColorSilver
Bezel ColorNickel
SizeN/A
Fuel Pressure Gauge IncludedNo
Water Temperature Gauge IncludedYes
Clock IncludedNo
Brake Bias Gauge IncludedNo
Bezel FinishPlatinum
Boost Gauge IncludedNo
Ammeter Gauge IncludedNo
Mounting Bracket IncludedYes
Gauge StyleAuto Meter American Platinum
Gauge Number ColorBlack
Voltage Gauge IncludedYes
Oil Temperature Gauge IncludedNo
Transmission Temperature Gauge IncludedNo
Lighting TypeIncandescent
Bezel StyleStreet Rod
QuantitySold as a kit
Fuel Level Gauge IncludedYes
Dial (Face Color)Silver
Pyrometer Gauge IncludedNo
Tachometer Gauge IncludedNo
Pointer ColorBlack
Gauge SeriesAnalog
Speedometer Gauge IncludedYes
Oil Pressure Gauge IncludedYes
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number1901
Package Qty1
Package TypeEA
