Vehicle Info NeededAUTO METERPART NUMBER: 105-2014

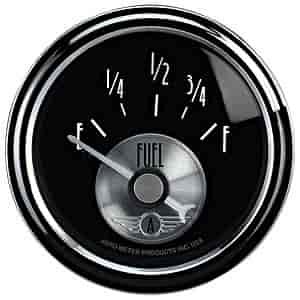

Black Diamond Fuel Level Gauge 2-1/16" Electrical
$9699
Ships on 09/08/2026
Lowest Price Guarantee2-1/16"
- Black Diamond Fuel Level Gauge
- 2-1/16" Electrical
- 0-90 ohms
- Domed Lens
- Quality Construction
- Chrome Bezel
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Works with most 1965 to 1997 Chevrolet/GM senders
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes mounting hardware and detailed instructions for installation
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60"s to mid 90"s), 0-30 ohm (early GM), 73-10 ohm (pre 90"s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Part TypeGauge
BrandAUTO METER
Package Height4.5
Package Width4.5
Package Length5.0
Weight0.49 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Gauge Size (Mm)52.40 diameter
Gauge Face ColorBlack
Bezel ColorChrome
Sweep90 degree sweep
Size2.063 in (52.4 mm)
Bezel FinishChrome
Gauge StyleAuto Meter Prestige
Gauge Number ColorWhite
Gauge RangeEmpty-full
Sender Ohm Range0 ohms empty, 90 ohms full
Lighting TypeLED
Gauge TypeFuel Level
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleStreet Rod
QuantitySold individually
Dial (Face Color)Black
Gauge Size (In.)2 1/16 diameter
Pointer ColorWhite
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorWhite
Vendor Part Number2014
Package Qty1
Package TypeEA
