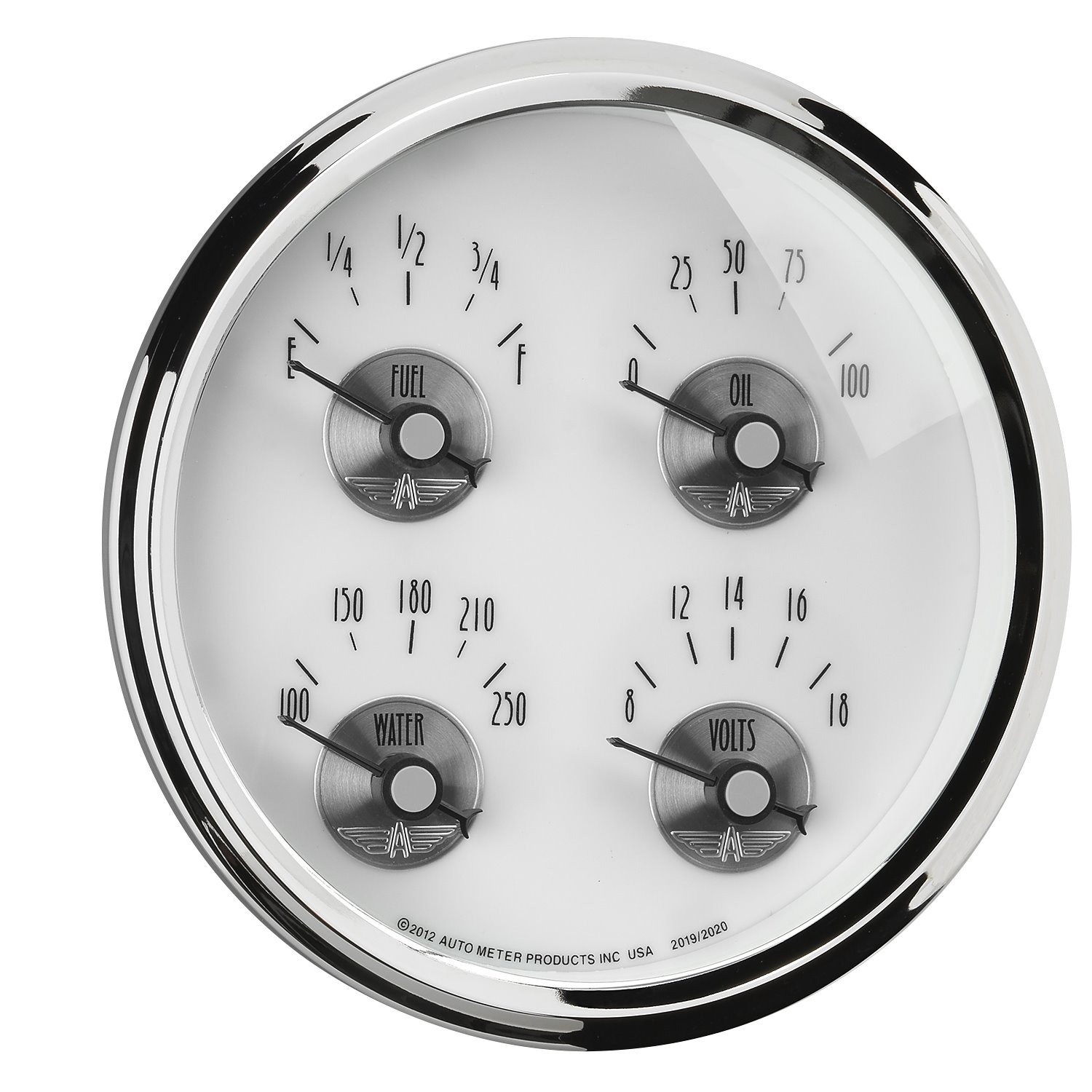

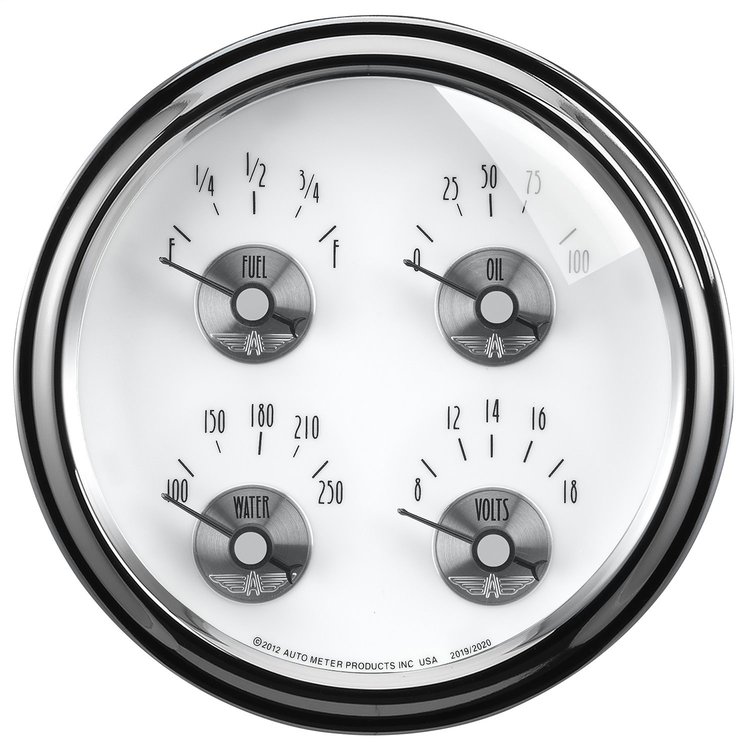

Prestige Pearl 5" Quad Gauge Fuel Level (0-90 ohms)

Name: Prestige Pearl 5" Quad Gauge Fuel Level (0-90 ohms)
Brand: AUTO METER
SKU: 105-2020
Price: 309.36 USD
Availability: InStock

^$309³⁶

Ships on 09/14/2026

Lowest Price Guarantee

Fuel Level (0-90 ohms)
Oil Pressure (100 psi)
Water Temperature (100°-250° F)
Voltmeter (8-18 volts)
Modern white LED through-the-dial lighting provides clear visibility during nighttime use
Works with most 1965 to 1997 Chevrolet/GM senders
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Gauge kit includes mounting hardware and detailed instructions for installation
AutoMeter's race proven air-core electric instruments provide quick and accurate readings

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8" NPT temperature sender and a 1/8" NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60"s through mid 90"s GM fuel level senders).

Part TypeGauge

BrandAUTO METER

Package Height5.0

Package Width6.0

Package Length6.0

Weight1.75 PG

Part CategoryPerformance Parts

Bezel ColorChrome

Pointer ColorBlack

Size5 in (127 mm)

Bezel StyleStreet Rod

Lighting TypeLED
