Lowest Price Guarantee- Z-Series
- Exhaust Pressure Gauge
- 2 1/16 in.
- 60 psi
- Digital Stepper Motor

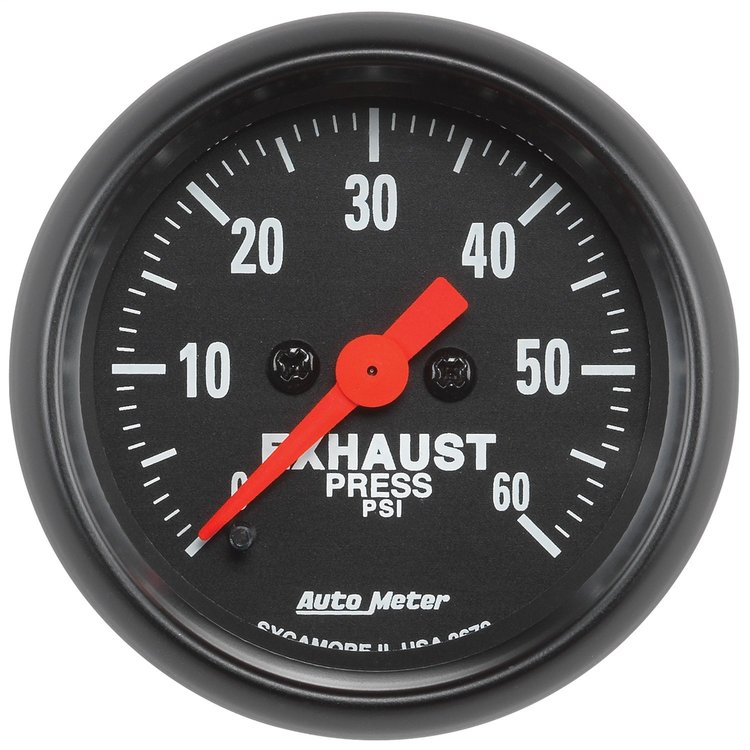

- Z-Series Exhaust Pressure Gauge
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous gases outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- Gauge kit includes 1/8" NPT stainless steel pressure transducer, copper tubing kit, wiring harness, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Recommended Particle Trap Kit (#5375) available separately for increased lifespan of the pressure transducer and ease of gauge hardware maintenance
One of the most requested line additions in AutoMeter history, this Digital Stepper Motor Exhaust Pressure Gauge has been engineered to the highest standards of accuracy and durability. Precisely monitor your exhaust backpressure to maximize power and efficiency and ensure turbo longevity. Also ideal for cam tuning, includes a highly advanced 1/8" NPT Pressure Transducer, install kit and wiring harness for ease of installation. Data Logging is also possible thanks to an analog .5 - 4.5v output. An optional particulate filter is also available for enhanced sensor lifespan.
Part TypeGauge
BrandAUTO METER
Package Height5.25
Package Width5.5
Package Length5.5
Weight1.4 PG
Part CategoryPerformance Parts
Bezel ColorBlack
Pointer ColorFluorescent Red
Size2.063 in (52.4 mm)
Bezel StyleSuper Bezel
Lighting TypeIncandescent
Part FitmentUniversal
Lighting ColorWhite Incandescent
Dial (Face Color)Black
Vendor Part Number2672
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
