Vehicle Info NeededAUTO METERPART NUMBER: 105-3347

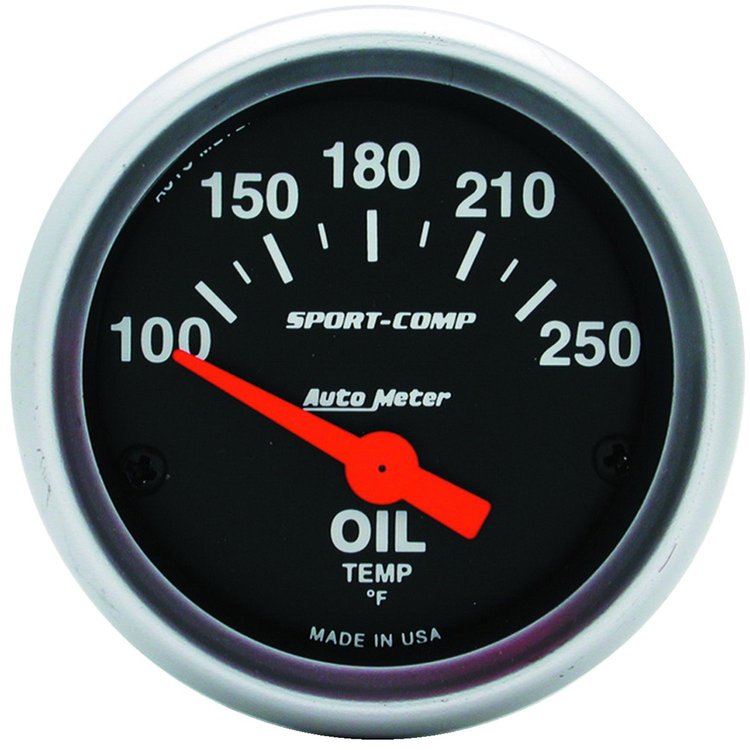

Sport-Comp Oil Temperature Gauge 2-1/16" Electrical
$8299
Ships on 09/08/2026
Lowest Price GuaranteeOil Temp Electrical Gauges
- Sport-Comp Oil Temperature Gauge
- 2-1/16" Electrical
- 100°-250° F
- 1/8' NPT sender and 3/8' and 1/2' NPT adapters/fittings included
- If mounting in steel pan, #105-2260 is recommended
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
An engine running a high oil temperature will fail, as proven time and time again. Monitoring this critical parameter ensures that you are running the correct weight oil and that your oil cooling system is performing properly. Highly accurate and durable thanks to AutoMeter's patented air core meter movement, a single wire, 1/8" NPT temperature sender is included.
Part TypeGauge
BrandAUTO METER
Package Height4.5
Package Width4.7
Package Length4.8
Weight0.6 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
MeasurementUS
Temperature100-250 F
Gauge Size (Mm)52.40 diameter
Gauge Face ColorBlack
Bezel ColorBrushed Aluminum
Sweep90 degree sweep
Size2.063 in (52.4 mm)
Bezel FinishSilver
Gauge StyleAuto Meter Sport-Comp
Gauge Number ColorWhite
Gauge Range100-250 degrees F
Lighting TypeIncandescent
Gauge TypeOil Temperature
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Black
Gauge Size (In.)2 1/16 diameter
TypeElectrical
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number3347
Package Qty1
Package TypeEA
