Made in USA

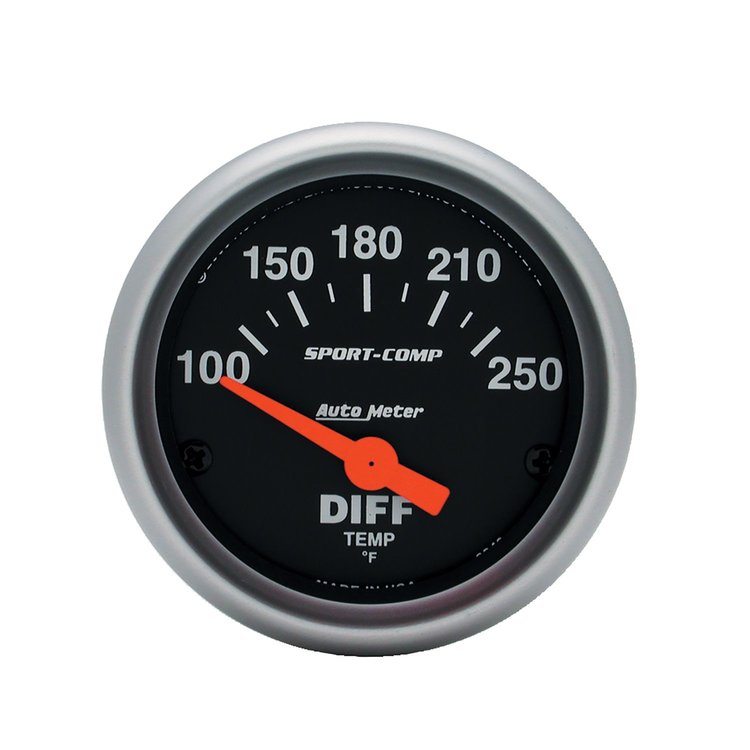

Sport-Comp Differential Temperature Gauge 2-1/16" Electrical
InfoVehicle Info Needed
AUTO METERPART NUMBER: 105-3349

Sport-Comp Differential Temperature Gauge 2-1/16" Electrical

$7499
ShippingShips on 09/14/2026
Lowest PriceLowest Price Guarantee

Differential Temp Electrical Gauges
    Sport-Comp Differential Temperature Gauge
  • 2-1/16" Electrical
  • 100°-250° F

    1/8" NPT sender and 3/8" and 1/2" NPT adapters/fittings included
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • When your vehicle leaves the pavement, the importance of differential temp can't be understated. Make sure your vehicle will make it safely back to the pavement and ensure the long life of your differential with AutoMeter's Short Sweep Electronic Diff Temp Gauge. Built with the same attention to quality and detail as every AutoMeter gauge, you can be assured of top notch accuracy and durability thanks to AutoMeter's patented air core meter movement.. A single wire 1/8" NPT temperature sender is included.

Part TypeGauge
BrandAUTO METER
Package Height4.5
Package Width4.8
Package Length5.0
Weight0.65 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Liquid-FilledNo
Gauge Size (Mm)52.40 diameter
Gauge Face ColorBlack
Bezel ColorBrushed Aluminum
Sweep180 degree sweep
Size2.063 in (52.4 mm)
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Black
Bezel FinishSilver
Gauge Size (In.)2 1/16 diameter
Pointer ColorFluorescent Red
Gauge StyleAuto Meter Sport-Comp
Gauge Number ColorWhite
Gauge SeriesAnalog
Gauge Range100-250 degrees F
Oem ReplacementNo
Lighting TypeIncandescent
Part FitmentSemi Universal
Lighting ColorWhite Incandescent
Gauge TypeDifferential temperature
Sending UnitElectrical
Vendor Part Number3349
Package Qty1
Package TypeEA
