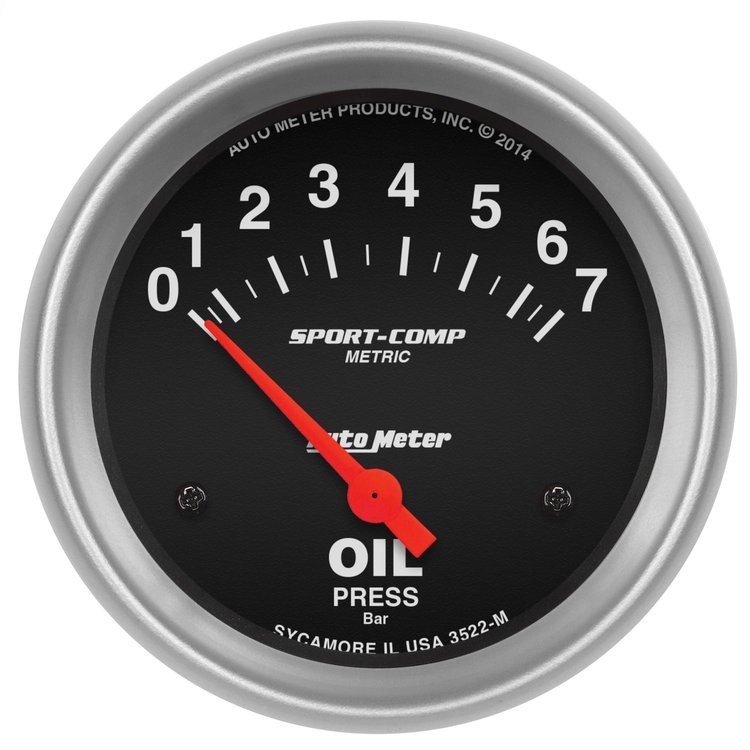

Sport-Comp Metric Oil Pressure Gauge 2-5/8" Electrical

Name: Sport-Comp Metric Oil Pressure Gauge 2-5/8" Electrical
Brand: AUTO METER
SKU: 105-3522-M
Price: 104.29 USD
Availability: InStock

^$104²⁹

Ships on Sep 11, 2026

Lowest Price Guarantee

Oil Pressure Electrical Gauges

2-5/8" Electrical
0-7 bar

Sport-Comp; Electric Metric Oil Pressure Gauge; 2.625 in.; 0 - 7 Bar; Incl. 0.125 in. NPT Electric Sender; 0.25 in. NPT Adapter Fitting; Air-Core Meter Movement;
Traditional incandescent lighting illuminates around the perimeter of the dial
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Gauge kit includes 1/8" NPT pressure sender, 1/4" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle

Quite possibly the most critical vital to monitor, engine oil pressure can mean the difference between making it home and needing to replace the engine. The patented air core meter movement provides the durability and accuracy that you expect from the AutoMeter name. Throughout 57 years of building the world's best competition instruments, this meter movement has been the engine powering the machine that sets the benchmark. A single wire, 1/8" NPT oil pressure sender is included.

Part TypeGauge

BrandAUTO METER

Package Height6.3

Package Width6.4

Package Length6.5

Weight1.25 PG

Part CategoryPerformance Parts

Sending Unit IncludedYes

Gauge Size (Mm)67.00 diameter

Gauge Face ColorBlack

Bezel ColorBrushed Aluminum

Sweep90 degree sweep
