Made in USA

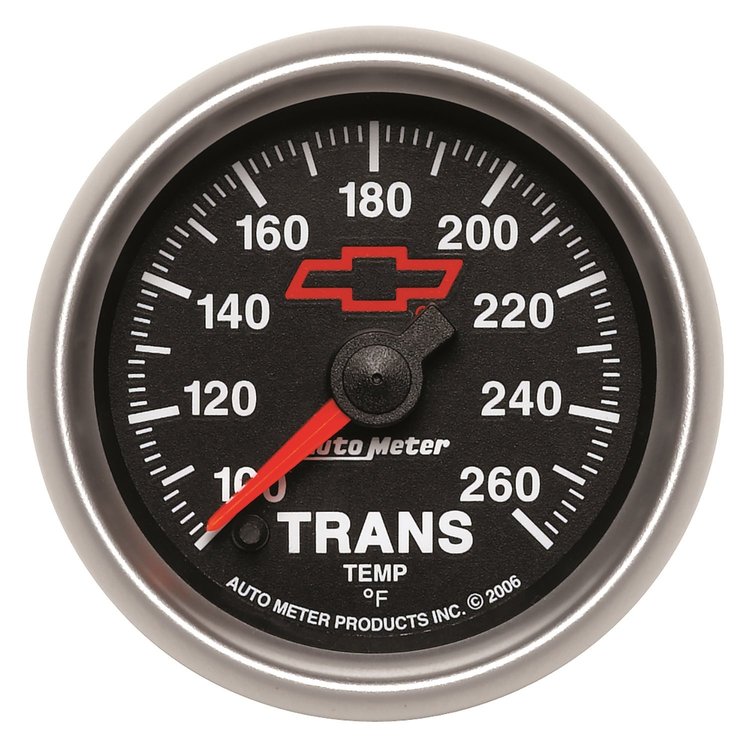

Officially Licensed Chevrolet Performance Transmission Temperature Gauge 2-1/16" Electrical (Full Sweep)
InfoVehicle Info Needed
AUTO METERPART NUMBER: 105-3657-00406

Officially Licensed Chevrolet Performance Transmission Temperature Gauge 2-1/16" Electrical (Full Sweep)

Size :

$18499
ShippingShips on 09/14/2026
Lowest PriceLowest Price Guarantee

    Officially Licensed Chevrolet Performance Transmission Temperature Gauge
  • 2-1/16" Electrical (Full Sweep)
  • 100°-260° F

  • Red Pointer For Quick Glance Monitoring
  • 1 Year Limited Warranty
  • Modern LED through-the-dial lighting provides clear visibility during nighttime use
  • Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
  • Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
  • AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
  • The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
  • Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Digital Stepper Motor Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. AutoMeter's most advanced 1/8" NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option.

    Electrical or mechanical, these quality gauges have black faces/silver bezels or white faces/black bezels; both options have red pointers and Chevrolet Bow Tie logos. Most also have incandescent perimeter lighting.
Part TypeGauge
Product LineAuto Meter Officially Licensed GM Gauges
BrandAUTO METER
Package Height4.5
Package Width4.6
Package Length4.9
Weight0.7 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Gauge Size (Mm)52.40 diameter
Gauge Face ColorBlack
Bezel ColorBrushed Aluminum
SweepFull sweep
Size2.063 in (52.4 mm)
Bezel FinishSilver
Gauge StyleAuto Meter Sport-Comp II Chevy Bowtie
Gauge Number ColorWhite
Gauge Range100-260 degrees F
Lighting TypeLED
Gauge TypeTransmission temperature
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Black
Gauge Size (In.)2 1/16 diameter
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorWhite
Vendor Part Number3657-00406
Package Qty1
Package TypeEA
