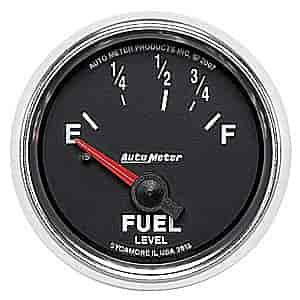

GS Series Fuel Level Gauge 2-1/16", Electrical (Short Sweep)

Name: GS Series Fuel Level Gauge 2-1/16", Electrical (Short Sweep)
Brand: AUTO METER
SKU: 105-3815
Price: 81.32 USD
Availability: InStock

Size :

^$81³²

Ships on 09/10/2026

Lowest Price Guarantee

2-1/16", Electrical (Short Sweep)
73 Empty/8-12 Full
Ford

Works with most pre-1989 (Pre 1987 Mustang) Ford and Chrysler sending units
Modern green LED through-the-dial lighting provides clear visibility during nighttime use
Works with most Pre-1989 (Pre-1987 Mustang) Ford and most Chrysler
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Gauge kit includes mounting hardware and detailed instructions for installation
AutoMeter's race proven air-core electric instruments provide quick and accurate readings

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60"s to mid 90"s), 0-30 ohm (early GM), 73-10 ohm (pre 90"s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Infuse your custom interior with the OE-inspired look and race-precision readings of Auto Meter GS Series Gauges. Short or full sweep electrical and mechanical stepper models are available with black dials, white markings, and high contrast orange pointers for easy daytime reading. At night, GS instruments come to life with Auto Meter's signature high-definition through-the-dial LED lighting in a vibrant shade of green! Also look for patented glowing orange lit pointers, bright anodized aluminum bezels, and quality race-proven meter movements. Get a GS Gauge to complement existing gauges or get a set for a fresh look!

Part TypeGauge

Product LineAuto Meter GS Series Gauges

BrandAUTO METER

Package Height4.6

Package Width4.6

Package Length4.9

Weight0.25 PG

Part CategoryPerformance Parts

Sending Unit IncludedNo

Gauge Size (Mm)52.40 diameter

Gauge Face ColorBlack

Bezel ColorBright Anodized
