Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

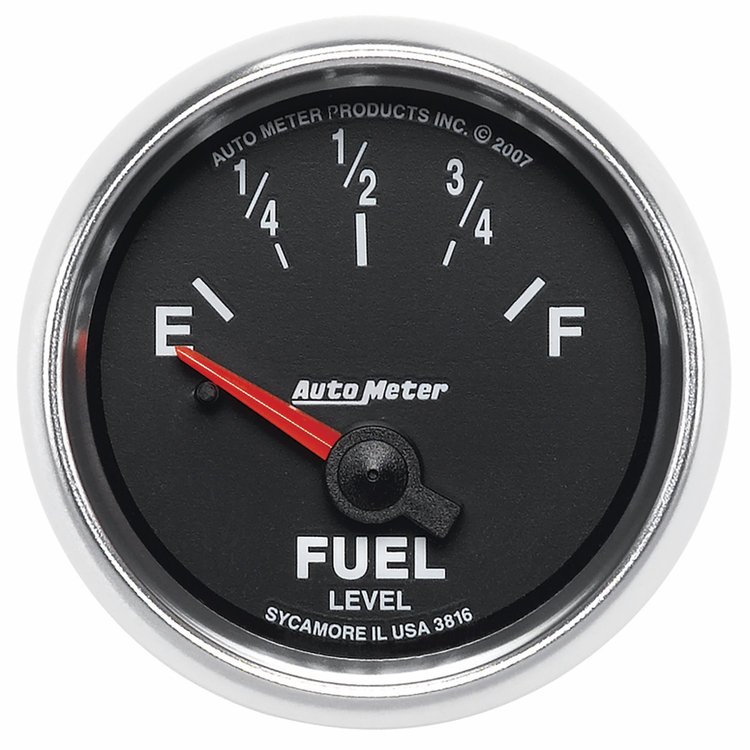

- GS Series Fuel Level Gauge
- 2-1/16", Electrical (Short Sweep)
- 240 Empty/33 Full
Works with 240-33 ohm sending units, including Autometer 3262. - Modern green LED through-the-dial lighting provides clear visibility during nighttime use
- Works with 240E/33F ohm senders, including AutoMeter 3262
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes mounting hardware and detailed instructions for installation
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60"s to mid 90"s), 0-30 ohm (early GM), 73-10 ohm (pre 90"s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Part TypeGauge
BrandAUTO METER
Package Height4.6
Package Width4.7
Package Length5.1
Weight0.3 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Liquid-FilledNo
Gauge Size (Mm)52.40 diameter
Gauge Face ColorBlack
Bezel ColorBright Anodized
Sweep90 degree sweep
Size2.063 in (52.4 mm)
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Black
Bezel FinishChrome
Gauge Size (In.)2 1/16 diameter
Pointer ColorFluorescent Red
Gauge StyleAuto Meter GS
Gauge Number ColorWhite
Gauge SeriesAnalog
Gauge RangeEmpty-full
Sender Ohm Range240 ohms empty, 33 ohms full
Oem ReplacementNo
Lighting TypeLED
Lighting ColorGreen
Gauge TypeFuel Level
Sending UnitElectrical
Vendor Part Number3816
Package Qty1
Package TypeEA
