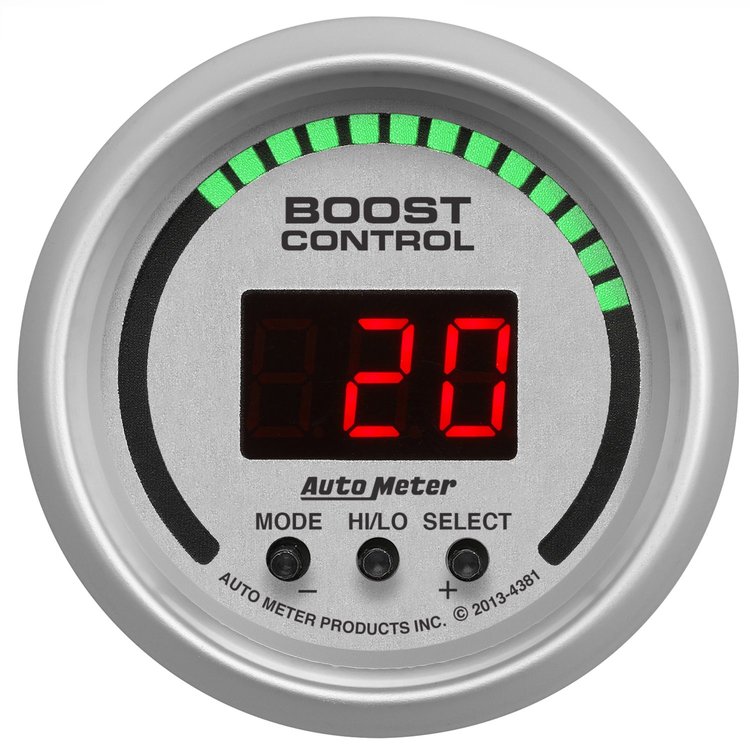

Vehicle Info NeededBoost Controller 2-1/16", Digital
Size :
Ships on 09/04/2026
Lowest Price Guarantee- Boost Controller
- 2-1/16", Digital
- 30 Hg/30 psi
- Silver Dial/Red LED
Notes: - Standard Hi/Lo Boost, Boost by RPM, and Boost by Gear
- EZ On-Controller Programming - No Need for External Modules.
- Exclusive Progressive Overboost Warning System and Peak Recall.
- Patented Pro-Control Input Allows External Devices to Trigger Safety Mode and Prevent Engine Damage.
- Patented Pro-Control Output Enables Automatic Control of Other Power Systems - Nitrous, Water/Methanol Injection.
- Configurable Data Log Output for Easy ECU or Data Logger Integration.
- Ideal for Single or Twin Turbo Turbocharged Applications.
- Not For Diesel Applications or Wastegate-less Setups.
- User programmable high/low boost, boost by gear, and boost by RPM.
- EZ' On-Controller Programming - No Need for External Modules
- Exclusive Progressive Overboost Warning System and Peak Recall
- Patented Pro-Control' Input Allows External Devices to Trigger Safety Mode and Prevent Engine Damage. Patented Pro-Control' Output Enables Automatic Control of Other Power Systems - Nitrous, Water/Methanol Injection
- Configurable Data Logger Output for Easy ECU or Data Logger Integration.
- Ideal for Single or Twin Turbo Turbocharged Applications. Not For Diesel Applications or Wastegate-less Setups
- Display readings in PSI, kPa, or BAR
- Includes 6ft. Wire harness, MAP sensor, Boost Control Valve
- Programmable high boost warning and shut down modes.
- Peak Boost Recall.
Offering an unparalleled feature set, the AutoMeter Boost Controller redefines what a boost controller should be. In addition to the standard hi/lo mode, boost by RPM and boost by gear give you absolute control of your power delivery. Initial setup is is incredibly simple using an intuitive menu and a revolutionary gear capture process. Configurable warnings with peak recall and boost shutdown are standard safety features designed to protect your engine. A scalable display range allows you to tailor resolution to show only the needed range for your application. AutoMeter's Pro Control output system is equipped to allow electric devices to be controlled at a user defined boost pressure (such as water/meth injection, nitrous, etc.) as well as Pro-Control input to default to waste gate spring pressure should the need arise. Display pressure in PSI, BAR, or kPa and easily data log and display with or without realtime barometric compensation. A direct plug wiring harness is included for ease of installation.
Putting together the most advanced feature set ever seen in a boost controller, Auto Meter has redefined the category. Packaged in a familiar and easy to install 2 1/16" gauge housing, this cutting edge device offers some of the most powerful functions ever assembled for safely extracting the most performance possible from your forced induction application. In depth tunability provides the most power where you actually want it; the ground. Intuitive programming right through the gauge (no separate software or laptop is necessary) makes setup and use incredibly easy.
Show More
High/Low Boost Modes
Essentially two different, configurable boost settings that can be switched between with the push of a button. Perfect for the daily driver/weekend warrior, power can be called upon only when you need it striking the perfect balance between performance and efficiency. Boost By RPM
Integrating Auto Meter's most advanced digital tachometer circuit, your boost curve can be tuned precisely at 500 RPM increments to minimize wheelspin and put more power to the ground. One Touch Gear Capture
Because our Boost Controller looks at not only engine speed, but also vehicle speed, you can instantly capture the each gear with the push of a button. Simply drive normally in your chosen gear and hit the capture button. Our advanced algorithms determine your exact gear in real time based on the ratio of these two inputs. Boost By Gear
Knowing you exact gear at all times allows for individual boost pressure curves for each gear. Limit power in lower gears to maximize traction and let it fly in higher gears to maximize speed. Peak Recall
One touch recall of the highest boost pressure seen during a given time period. Configurable Warnings w/ Overboost Protection
Easy to set parameters provide a full face warning if boost pressure moves beyond your settings. The warning doubles in speed if you pass it by 2 psi or more. The controller can also automatically return the system to wastegate spring pressure in the instance of overboost conditions, potentially averting catastrophic damage to your engine. Pro Control Output
Using your boost measurements, the Auto Meter boost controller can automatically trigger external devices at a given boost pressure level, either on the high or low end of the scale. Pro Control Input
Not only will the Auto Meter Boost Controller control external devices, it can also be controlled by external devices. Any ground signal sent to the Pro Control input will immediately back boost levels down to wastegate spring pressure. Configurable Display
Highly versatile, boost pressure can be read in inHG/PSI, cmHG/BAR or kPa. Real time barometric compensation can also be turned on of off to account for changes in altitude and environmental conditions. Data Logger Output
It has traditionally been a huge challenge to log both vacuum and boost. Our revolutionary approach to measurement allows for simple, configurable scale logging of both in either PSIA (absolute) or PSIG (gauge display) Tach/Speed Signal Diagnostic
As both signals are critical to extracting the most from your Boost Controller, both signals feature real time on board diagnostics to verify the presence of proper signals. Taking it one step further, if the signal is interrupted during operation, the gauge will provide a warning. A Comprehensive Package
Everything from the gauge to the wiring harness and sensor to the electronic boost control solenoid is included in the package. There are no additional pieces necessary to purchase to install and take advantage of every function. Features:
- Compact Design, Match Existing Auto Meter Gauges
- HI/Lo Boost, Boost by Gear, Boost by RPM
- Pro-Control Input & Output for Maximum Control
- Exclusive Configurable Date Log Output
- Ideal for Single or Twin Turbo Turbocharged Applications
- Maximum Boost Pressure Up to 30 PSI
- Any Displacement, Any Cylinder Configuration
- Not for Diesel Applications or Wastegate-less Setups
