Vehicle Info NeededAUTO METERPART NUMBER: 105-4440

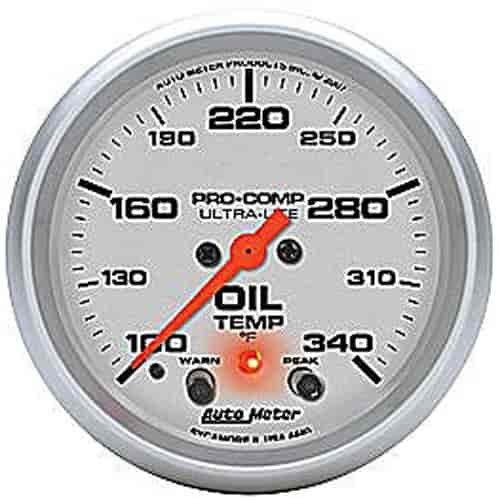

Ultra-Lite Oil Temperature Gauge 2-5/8" electrical
$21199
Ships on 09/09/2026
Lowest Price GuaranteeOil Temp Electrical Gauges
- Ultra-Lite Oil Temperature Gauge
- 2-5/8'' electrical
- 100°-340°
- Built-in Peak & Warning
Includes 1/8" sending unit and 8' wiring harness - Traditional incandescent lighting illuminates around the perimeter of the dial
- Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- Acquire data for later review with one-touch Peak Recall functionality
- Set a custom alert specific to your vehicle & receive warning notification to highlight the need for driver attention
- Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you've got the proper oil weight and cooling capacity. Using AutoMeter's advanced 1/8" NPT two wire temperature transducer, you can be assured of the most accurate possible readings of the life blood of your engine. The advanced Digital Stepper Motor Drive keeps needle movement smooth and precise. Peak value recall and a configurable warning point help you to keep your eyes on the task at hand. A direct plug in wiring harness is included for ease of installation.
Part TypeGauge
BrandAUTO METER
Package Height5.3
Package Width5.6
Package Length5.6
Weight0.8 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
MeasurementUS
Temperature100-340 F
Gauge Size (Mm)67.00 diameter
Gauge Face ColorSilver
Bezel ColorBrushed Aluminum
SweepFull sweep
Size2.625 in (66.7 mm)
Bezel FinishSilver
Gauge StyleAuto Meter Ultra-Lite
Gauge Number ColorBlack
Gauge Range100-340 degrees F
Lighting TypeIncandescent
Gauge TypeOil Temperature
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Silver
Gauge Size (In.)2 5/8 diameter
TypeElectrical
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number4440
Package Qty1
Package TypeEA
