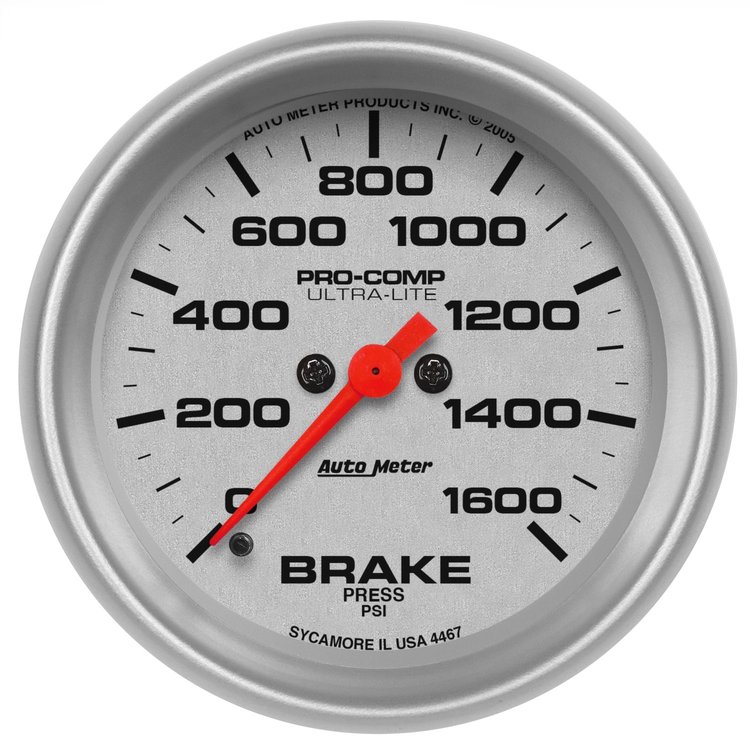

Ultra-Lite Brake Pressure Gauge 2-5/8" electrical

Name: Ultra-Lite Brake Pressure Gauge 2-5/8" electrical
Brand: AUTO METER
SKU: 105-4467
Price: 278.99 USD
Availability: InStock

^$278⁹⁹

Ships on 09/09/2026

Lowest Price Guarantee

Brake Pressure Electrical Gauges

2-5/8" electrical
0-1600 psi

1/8" NPT sender and 8' wiring harness included
Traditional incandescent lighting illuminates around the perimeter of the dial
Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
Gauge kit includes 1/8" NPT stainless steel pressure transducer, wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
12 and 16 volt compatible, compatible with nearly every street car or race car electrical system

High brake system pressures make this an environment that few gauges are up to the task of handling. AutoMeter's Digital Stepper Motor Brake Pressure Gauge provides not only the accuracy you expect from a top of the line instrument, but the durability you need under even the most demanding conditions. Includes a highly advanced 1/8" NPT Pressure Transducer and wiring harness for ease of installation. Data Logging is also possible thanks to an analog .5 - 4.5v output.

Part TypeGauge

BrandAUTO METER

Package Height5.1

Package Width5.5

Package Length5.7

Weight0.9 PG

Part CategoryPerformance Parts

Sending Unit IncludedYes

Liquid-FilledNo

Gauge Size (Mm)67.00 diameter

Gauge Face ColorSilver

Bezel ColorBrushed Aluminum
