Vehicle Info NeededAUTO METERPART NUMBER: 105-4469

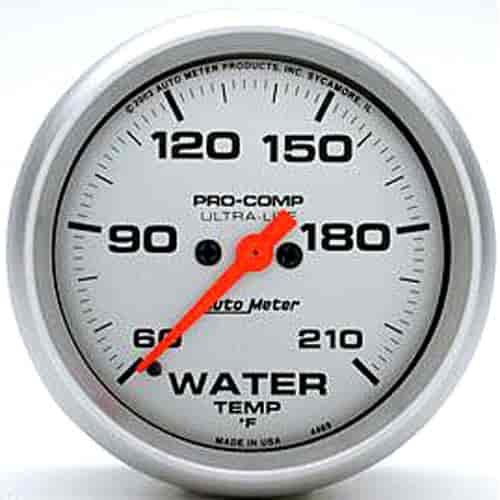

Ultra-Lite Water Temperature Gauge 2-5/8" electrical
$22599
Ships on 09/09/2026
Lowest Price GuaranteeWater Temp Electrical Gauges
- Ultra-Lite Water Temperature Gauge
- 2-5/8" electrical
- 60°-210° F
1/8" NPT sender, 3/8" and 1/2" NPT fittings, and 8' wiring harness included - Traditional incandescent lighting illuminates around the perimeter of the dial
- Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Engines don't like high water temperatures, Heat is the enemy of performance and reliability. Keep tabs on your temps with the most accurate, quickest responding water temperature gauge on the market. AutoMeter's advanced 1/8" NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation.
Part TypeGauge
BrandAUTO METER
Package Height5.1
Package Width5.6
Package Length6.0
Weight0.89 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Temperature60-210 F
Gauge Size (Mm)67.00 diameter
Gauge Face ColorSilver
Bezel ColorBrushed Aluminum
SweepFull sweep
Size2.625 in (66.7 mm)
Bezel FinishSilver
Gauge StyleAuto Meter Ultra-Lite
Gauge Number ColorBlack
Gauge Range60-210 degrees F
Lighting TypeIncandescent
Gauge TypeWater Temperature
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Silver
Gauge Size (In.)2 5/8 diameter
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number4469
Package Qty1
Package TypeEA
