Vehicle Info NeededAUTO METERPART NUMBER: 105-4704

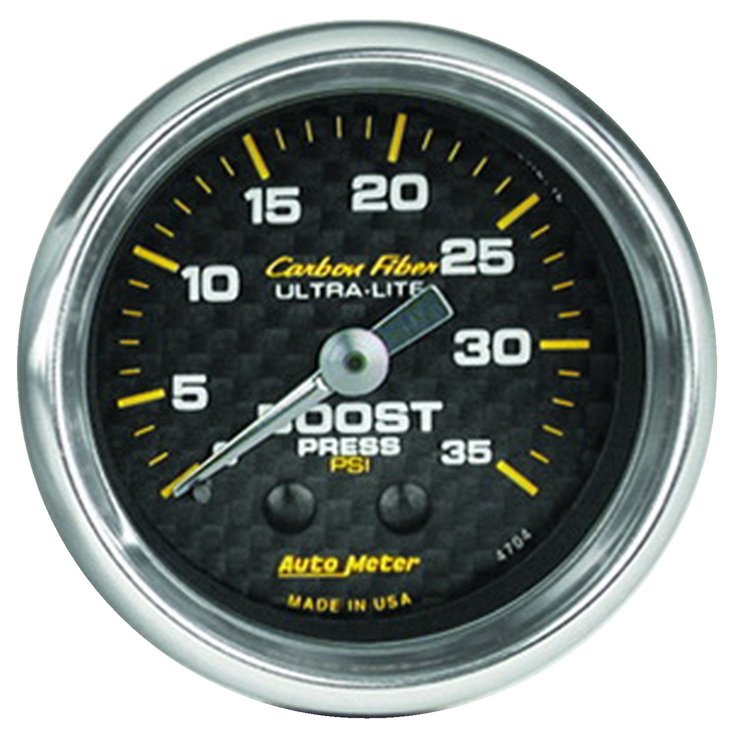

Carbon Fiber Boost Gauge 2-1/16" mechanical
$9799
Ships on 09/08/2026
Lowest Price GuaranteeVacuum/Boost Gauges
- Carbon Fiber Boost Gauge
- 2-1/16" mechanical
- 35 psi
1/8" and 1/4" NPT fittings and 10' nylon tubing included - Traditional incandescent lighting illuminates around the perimeter of the dial
- AutoMeter's race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Mechanical movements provide accuracy and durability even in the harshest environments
- Gauge kit includes 1/8" nylon line, 1/8" NPT compression fittings, 1/4" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Mechanical boost gauges have become the staple in boost pressure monitoring for all types of engines, gasoline, diesel, or otherwise. Ultra-precise bourdon tube meter movement ensures accuracy and durability not seen anywhere else in the industry. A simple 1/8" NPT pressure connection requires no electrical hookup for operation. Includes 1/8" NPT fittings and nylon line kit.
Part TypeGauge
BrandAUTO METER
Package Height4.4
Package Width4.4
Package Length5.0
Weight0.6 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Gauge Size (Mm)52.40 diameter
Gauge Face ColorCarbon Fiber
Bezel ColorBright Anodized
SweepFull sweep
Size2.063 in (52.4 mm)
Bezel FinishSilver
Gauge StyleAuto Meter Carbon Fiber Ultra-Lite
Gauge Number ColorWhite
Boost0-35 PSI
Lighting TypeIncandescent
Gauge TypeBoost pressure
Sending UnitMechanical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Carbon Fiber
Gauge Size (In.)2 1/16 diameter
Pointer ColorSilver
Gauge SeriesAnalog
Oem ReplacementNo
Gauge Range (Psi)0-35
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number4704
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
Some parts are not legal for use in California or other states with similar laws / regulations
