Made in USA

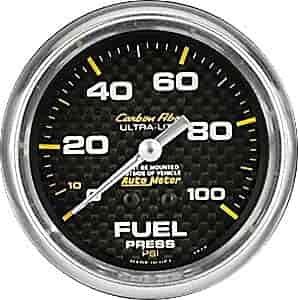

Carbon Fiber Fuel Pressure Gauge 2-5/8" mechanical
InfoVehicle Info Needed
AUTO METERPART NUMBER: 105-4812

Carbon Fiber Fuel Pressure Gauge 2-5/8" mechanical

$10699
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Fuel Pressure Gauges
    Carbon Fiber Fuel Pressure Gauge
  • 2-5/8" mechanical
  • 0-100 psi

  • Mounting cup and #4 braided stainless steel line required
  • Gauge must be mounted outside of vehicle and driver's compartment
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • AutoMeter's race proven mechanical instruments provide trusted accuracy while being simple to install
  • No electrical system required for gauge operation - compatible with every street or race vehicle
  • Gauge kit includes, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • Gauge threaded for -4AN, allowing an easy installation into the fuel system
  • Seeing the exact fuel pressure on your vehicle can mean the difference between extracting the most performance safely and expensive failures. AutoMeter's Mechanical Fuel Pressure Gauge will precisely measure your exact fuel pressure at levels of accuracy previously unheard of even in professional gauges. Designed for fuel injected or carbureted applications, a simple -4an connection makes installation easy. Don't take chances with your investment; a precise fuel pressure gauge could be the cheapest insurance you've ever bought. For the safety of the operator, it is not recommended that Fuel Pressure gauge are installed inside the cabin of the vehicle. Optional fuel isolators are available for both carbureted and fuel injected applications.

Part TypeGauge
BrandAUTO METER
Package Height5.1
Package Width5.5
Package Length5.7
Weight0.68 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Gauge Size (Mm)67.00 diameter
Gauge Face ColorCarbon Fiber
Bezel ColorBright Anodized
SweepFull sweep
Size2.625 in (66.7 mm)
Bezel FinishSilver
Gauge StyleAuto Meter Carbon Fiber Ultra-Lite
Gauge Number ColorWhite
Lighting TypeIncandescent
Gauge TypeFuel Pressure
Sending UnitMechanical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Pressure0-100 PSI
Dial (Face Color)Carbon Fiber
Gauge Size (In.)2 5/8 diameter
Pointer ColorSilver
Gauge SeriesAnalog
Oem ReplacementNo
Gauge Range (Psi)0-100
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number4812
Package Qty1
Package TypeEA
