Vehicle Info NeededAUTO METERPART NUMBER: 105-4848

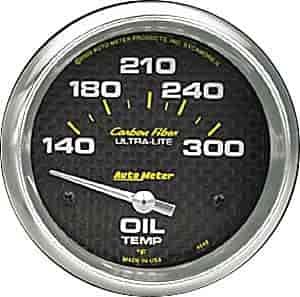

Carbon Fiber Oil Temperature Gauge 2-5/8" electrical
$10999
Ships on 09/10/2026
Lowest Price GuaranteeOil Temperature Gauges
- Carbon Fiber Oil Temperature Gauge
- 2-5/8" electrical
- 140°-300° F
1/8' NPT electric sender and 3/8' and 1/2' NPT adapter fittings included - Traditional incandescent lighting illuminates around the perimeter of the dial
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
An engine running a high oil temperature will fail, as proven time and time again. Monitoring this critical parameter ensures that you are running the correct weight oil and that your oil cooling system is performing properly. Highly accurate and durable thanks to AutoMeter's patented air core meter movement, a single wire, 1/8" NPT temperature sender is included.
Part TypeGauge
BrandAUTO METER
Package Height5.2
Package Width5.7
Package Length5.7
Weight0.84 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
MeasurementUS
Temperature140-300 F
Gauge Size (Mm)67.00 diameter
Gauge Face ColorCarbon Fiber
Bezel ColorBright Anodized
Sweep90 degree sweep
Size2.625 in (66.7 mm)
Bezel FinishSilver
Gauge StyleAuto Meter Carbon Fiber Ultra-Lite
Gauge Number ColorWhite
Gauge Range140-300 degrees F
Lighting TypeIncandescent
Gauge TypeOil Temperature
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Carbon Fiber
Gauge Size (In.)2 5/8 diameter
TypeElectrical
Pointer ColorSilver
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number4848
Package Qty1
Package TypeEA
