Vehicle Info NeededAUTO METERPART NUMBER: 105-5404

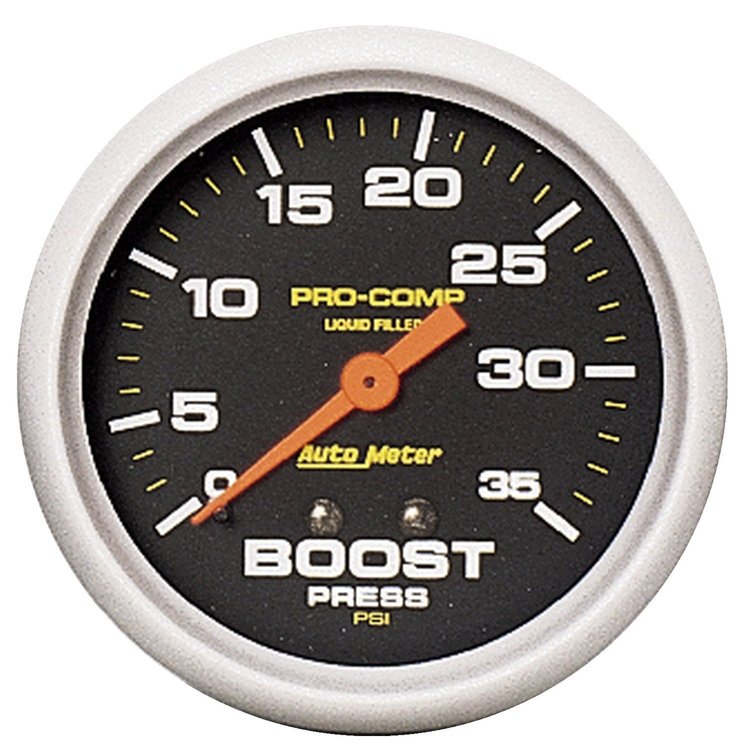

Pro-Comp Boost Gauge 2-5/8" liquid-filled mechanical
$11499
Ships on 09/08/2026
Lowest Price GuaranteeBoost Gauges
- Pro-Comp Boost Gauge
- 2-5/8" liquid-filled mechanical
- 35 psi
1/8" and 1/4' NPT adapters/fittings and 10' nylon tubing included - Traditional incandescent lighting illuminates around the perimeter of the dial
- Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
- Liquid filled design for superior resistance to shock, vibration, and the elements.
- AutoMeter's race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Gauge kit includes 1/8" nylon line, 1/8" NPT compression fittings, 1/4" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Mechanical boost gauges have become the staple in boost pressure monitoring for all types of engines, gasoline, diesel, or otherwise. Ultra-precise bourdon tube meter movement ensures accuracy and durability not seen anywhere else in the industry. A simple 1/8" NPT pressure connection requires no electrical hookup for operation. Includes 1/8" NPT fittings and nylon line kit.
Part TypeGauge
BrandAUTO METER
Package Height5.3
Package Width5.7
Package Length5.7
Weight1.09 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Gauge Size (Mm)67.00 diameter
Gauge Face ColorBlack
Bezel ColorBrushed Aluminum
SweepFull sweep
Size2.625 in (66.7 mm)
Bezel FinishSilver
Gauge StyleAuto Meter Pro-Comp
Gauge Number ColorWhite
Boost0-35 PSI
Lighting TypeIncandescent
Gauge TypeBoost pressure
Sending UnitMechanical
Liquid-FilledYes
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Black
Gauge Size (In.)2 5/8 diameter
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Gauge Range (Psi)0-35
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number5404
Package Qty1
Package TypeEA
