Vehicle Info NeededAUTO METERPART NUMBER: 105-5425

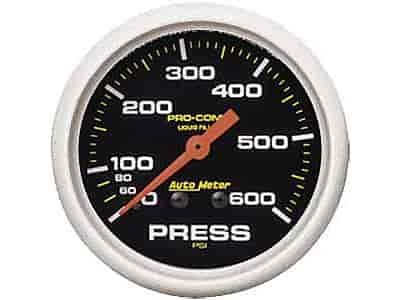

Pro-Comp Universal Pressure Gauge 2-5/8" liquid-filled mechanical
$11899
Ships on 09/08/2026
Lowest Price GuaranteeUniversal Pressure Gauges
- Pro-Comp Universal Pressure Gauge
- 2-5/8" liquid-filled mechanical
- 0-600 psi
- Braided stainless steel line (#105-3227 or #105-3228) and mounting cup (#105-5201 or #105-5202) required
- Gauge must be mounted outside of vehicle
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
- Liquid filled design for superior resistance to shock, vibration, and the elements.
- AutoMeter's race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Whatever pressure source you need to measure, AutoMeter's Mechanical Pressure Gauges will provide you a highly accurate, bullet proof reliable solution. The bourdon tube meter movement used in this gauge is engineered to function in even the harshest conditions and no electrical connection is needed for operation.
Part TypeGauge
BrandAUTO METER
Package Height4.37
Package Width4.5
Package Length4.75
Weight1.0 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Gauge Size (Mm)67.00 diameter
Gauge Face ColorBlack
Bezel ColorBrushed Aluminum
SweepFull sweep
Size2.625 in (66.7 mm)
Bezel FinishSilver
Gauge StyleAuto Meter Pro-Comp
Gauge Number ColorWhite
Lighting TypeIncandescent
Gauge TypePressure
Sending UnitMechanical
Liquid-FilledYes
Bezel StyleSuper Bezel
QuantitySold individually
Pressure0-600 PSI
Dial (Face Color)Black
Gauge Size (In.)2 5/8 diameter
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Gauge Range (Psi)0-600
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number5425
Package Qty1
Package TypeEA
