Vehicle Info NeededAUTO METERPART NUMBER: 105-5441

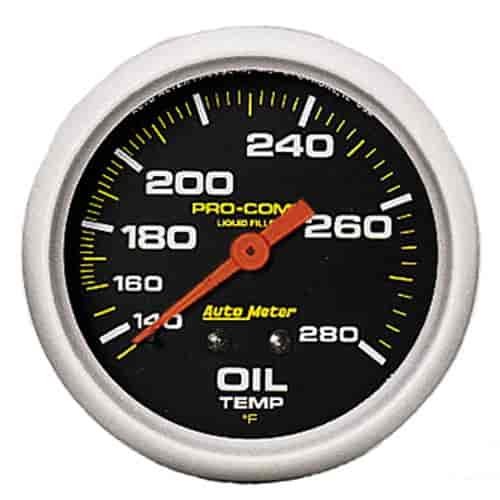

Pro-Comp Oil Temperature Gauge 2-5/8" mechanical
$16599
1 left in stock
Ships Today
Lowest Price GuaranteeOil Temp Gauges
- Pro-Comp Oil Temperature Gauge
- 2-5/8" mechanical
- 140°-280° F
- 1/2' NPT fitting and 6' capillary tubing included
- If mounting in steel pan, #105-2261 is recommended
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
- Liquid filled design for superior resistance to shock, vibration, and the elements.
- AutoMeter's race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Gauge kit includes 1/2" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you've got the proper oil weight and cooling capacity. Utilizing AutoMeter's ultra precise bourdon tube meter movement, you can be assured of the most accurate possible readings of the life blood of your engine. A 6" capillary tube and 1/2" NPT mounting nut are included.
Part TypeGauge
BrandAUTO METER
Package Height6.12
Package Width6.25
Package Length6.25
Weight1.25 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
MeasurementUS
Temperature140-280 F
Gauge Size (Mm)67.00 diameter
Gauge Face ColorBlack
Bezel ColorBrushed Aluminum
SweepFull sweep
Size2.625 in (66.7 mm)
Bezel FinishSilver
Gauge StyleAuto Meter Pro-Comp
Gauge Number ColorWhite
Gauge Range140-280 degrees F
Lighting TypeIncandescent
Gauge TypeOil Temperature
Sending UnitMechanical
Liquid-FilledYes
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Black
Gauge Size (In.)2 5/8 diameter
TypeMechanical
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number5441
Package Qty1
Package TypeEA
