Vehicle Info NeededAUTO METERPART NUMBER: 105-5638

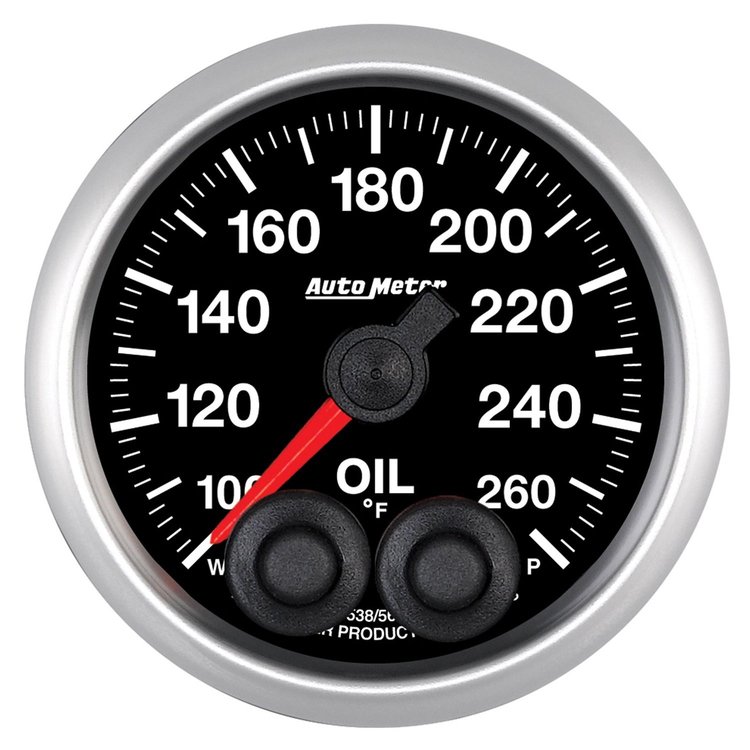

Elite Series Oil Temperature Gauge 100-260F
Size :
$23699
Ships on 09/09/2026
Lowest Price Guarantee2-1/16" Full Sweep Electrical GaugesWith Pro Control & Data Acquisition Outputs
- Elite Series Oil Temperature Gauge
- 100-260F
- Seven User Illumination Colors
- Expanded Viewable Area
- Advanced Circuit Design
- Brite White Always On Dial
- 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
- Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions like lights, fans, switches, & pumps allow drivers to focus on the competition while the gauges control key vehicle systems
- Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
- Acquire data for later review with one-touch Peak Recall functionality
- Data logger 0-5V output provides ECU and data systems with vital information
- Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you've got the proper oil weight and cooling capacity. Using AutoMeter's advanced 1/8" NPT two wire temperature transducer, you can be assured of the most accurate possible readings of the life blood of your engine. The advanced Digital Stepper Motor Drive keeps needle movement smooth and precise. A direct plug in wiring harness is included for ease of installation.
Elite series gauges were developed with top racing teams & drivers to achieve the ultimate in precision, visibility and functionality.
Features:
- 7 user selectable colors to match visual preferences of driver and visibility conditions
- Expanded viewable area while still maintaining a compact 2-1/16" size
- Powered by advanced circuit designs for improved electrical noise resistance and precision.
Show More
- Competition series gauges feature solid state, data acquisition grade sending units, digital stepper motor movements, and bright white "always on" hi def LED through the dial illumination.
- Enhanced with pro-control functionality, these instruments allow drivers to focus on the competition while the gauges control key vehicle systems & alert the driver to warning conditions.
- Streamline your setup with built in pro control circuits with custom programmable activation and deactivation points for key functions like lights, fans, switches and pumps.
- Set custom alert high and low points specific to your vehicle and receive full dial warning notification to highlight the need for driver attention.
- Acquire data for later review with one touch peak recall functionality.
- Data logger 0-5V output provides ECU and data systems with vital info.
Part TypeGauge
Product LineAuto Meter Elite Series Gauges
BrandAUTO METER
Package Height4.5
Package Width4.7
Package Length4.7
Weight0.84 PG
Part CategoryPerformance Parts
MeasurementUS
TypeElectrical
Temperature100-260 F
Bezel ColorBrushed Aluminum
Pointer ColorFluorescent Red
Size2.063 in (52.4 mm)
Bezel StyleSuper Bezel
Lighting TypeLED
Part FitmentUniversal
Lighting Color7 User Selectable Colors
Dial (Face Color)Black
Vendor Part Number5638
Package Qty1
Package TypeEA
