Vehicle Info NeededAUTO METERPART NUMBER: 105-5640

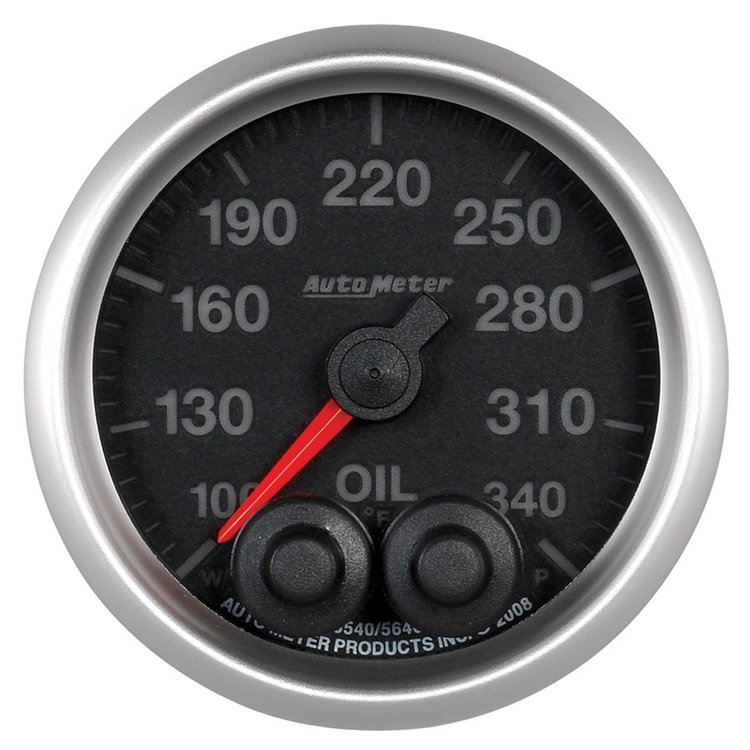

Elite Series Oil Temperature Gauge 100-340°F
$24099
9 left in stock
Ships Today
Lowest Price Guarantee2-1/16" Full Sweep Electrical GaugesWith Pro Control & Data Acquisition Outputs
- Elite Series Oil Temperature Gauge
- 100-340°F
- Includes 1/8" NPT sending unit, 3/8" and 1/2" NPT adapters, 8' wiring harness

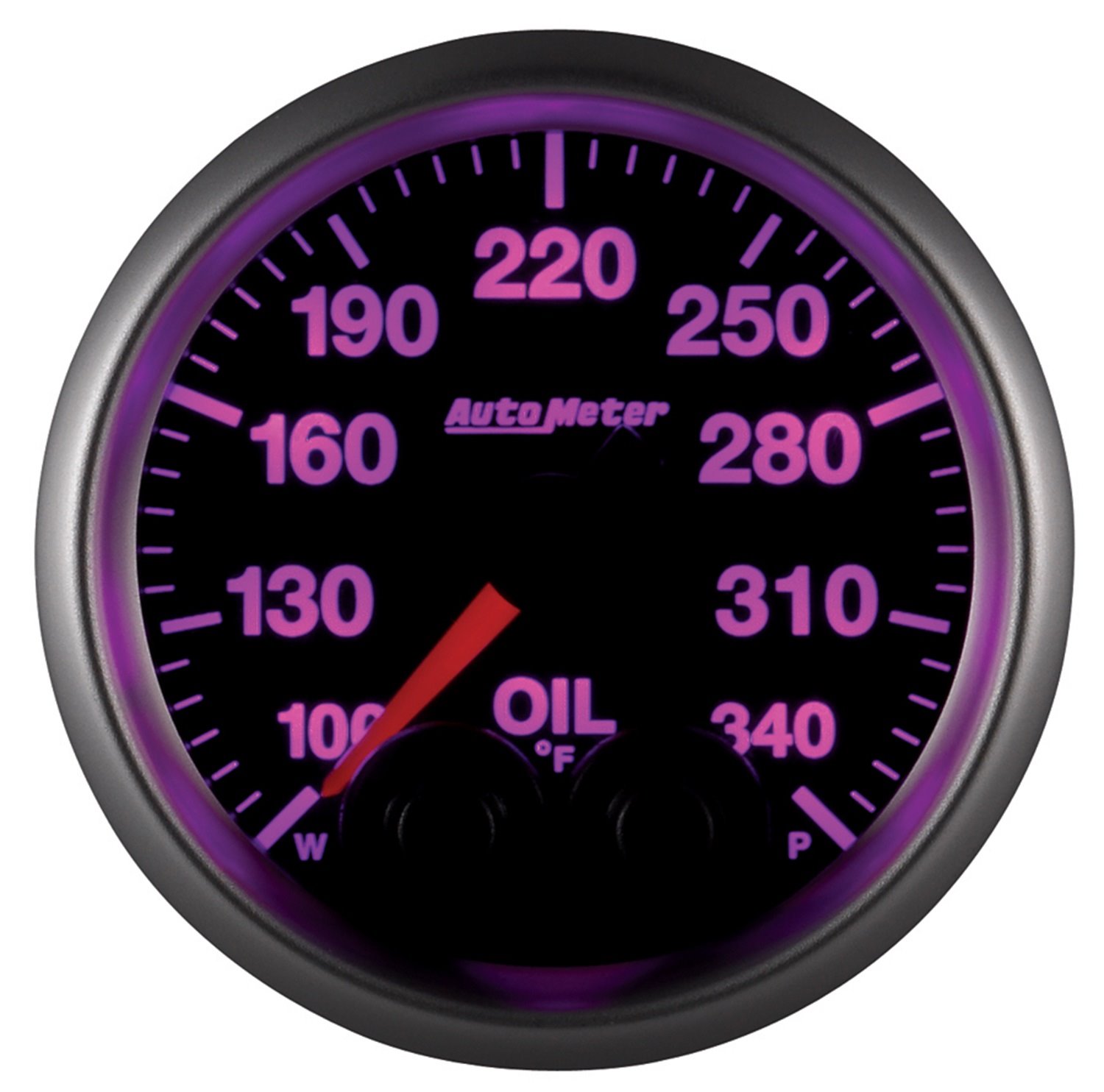

- 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
- Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions like lights, fans, switches, & pumps allow drivers to focus on the competition while the gauges control key vehicle systems
- Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
- Acquire data for later review with one-touch Peak Recall functionality
- Data logger 0-5V output provides ECU and data systems with vital information
- Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you've got the proper oil weight and cooling capacity. Using AutoMeter's advanced 1/8" NPT two wire temperature transducer, you can be assured of the most accurate possible readings of the life blood of your engine. The advanced Digital Stepper Motor Drive keeps needle movement smooth and precise. A direct plug in wiring harness is included for ease of installation.
Part TypeGauge
BrandAUTO METER
Package Height4.5
Package Width4.8
Package Length5.0
Weight0.89 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
MeasurementUS
Temperature100-340 F
Gauge Size (Mm)52.40 diameter
Gauge Face ColorBlack
Bezel ColorBrushed Aluminum
SweepFull sweep
Size2.063 in (52.4 mm)
Bezel FinishSilver
Gauge StyleAuto Meter Elite Series
Gauge Number ColorWhite
Gauge Range100-340 degrees F
Lighting TypeLED
Gauge TypeOil Temperature
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Black
Gauge Size (In.)2 1/16 diameter
TypeElectrical
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting Color7 User Selectable Colors
Vendor Part Number5640
Package Qty1
Package TypeEA
