Vehicle Info NeededAUTO METERPART NUMBER: 105-5652-05702

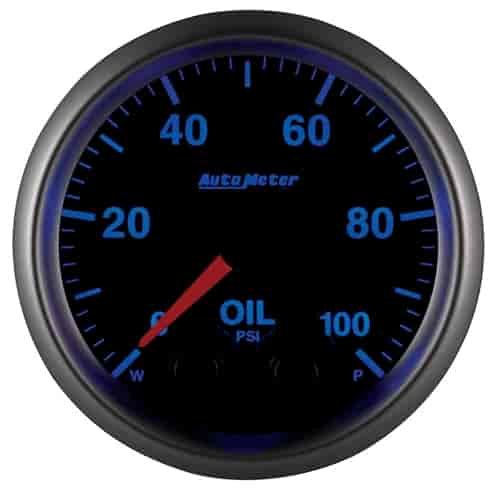

OIL PRESS 2 1/16 100PSI W/PEAK/WARN ELITE W/O PRO-CONTROL
$28019
Ships on 09/14/2026
Lowest Price Guarantee- OIL PRESS 2 1/16 100PSI W/PEAK/WARN ELITE W/O PRO-CONTROL
- 7 User-Selectable Lighting Colors
- Full Dial Color Change At The Configurable Shift Point
- Pit Road Speed Functions For Oval Track Use
- Can Be Mounted In The Pedestal Mount Or In The Dash
- 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
- This specialty variant gauge is NASCAR approved and eliminates the Pro-Control output and wiring present on the standard production Elite series model
- Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
- Acquire data for later review with one-touch Peak Recall functionality
- Gauge kit includes 1/8" NPT stainless steel pressure transducer, 1/4" NPT adapter, wiring harness, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
The life blood of your engine, a lack of oil pressure is one of the most catastrophic scenarios that can happen. Knowing the precise pressure is critical to both its longevity and performance, as well as your peace of mind. AutoMeter's Digital Stepper Motor Oil Pressure Gauge utilizes the most advanced technology on the market to deliver accuracy and durability you won't find anywhere else. Our advanced 1/8" NPT solid state pressure transducer (included) provides the best possible measurements with unparalleled resistance to vibration and heat. A direct plug in wiring harness is also included for ease of installation and data logging is available thanks to a .5 - 4.5v analog output.
Part TypeGauge
BrandAUTO METER
Package Height4.25
Package Width4.25
Package Length4.75
Weight0.8 PG
Part CategoryPerformance Parts
Size2.0625 / 2 1/16
Lighting TypeLED
Part FitmentUniversal
Pressure0-100 PSI
Dial (Face Color)Black
Vendor Part Number5652-05702
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
