Vehicle Info NeededAUTO METERPART NUMBER: 105-5652

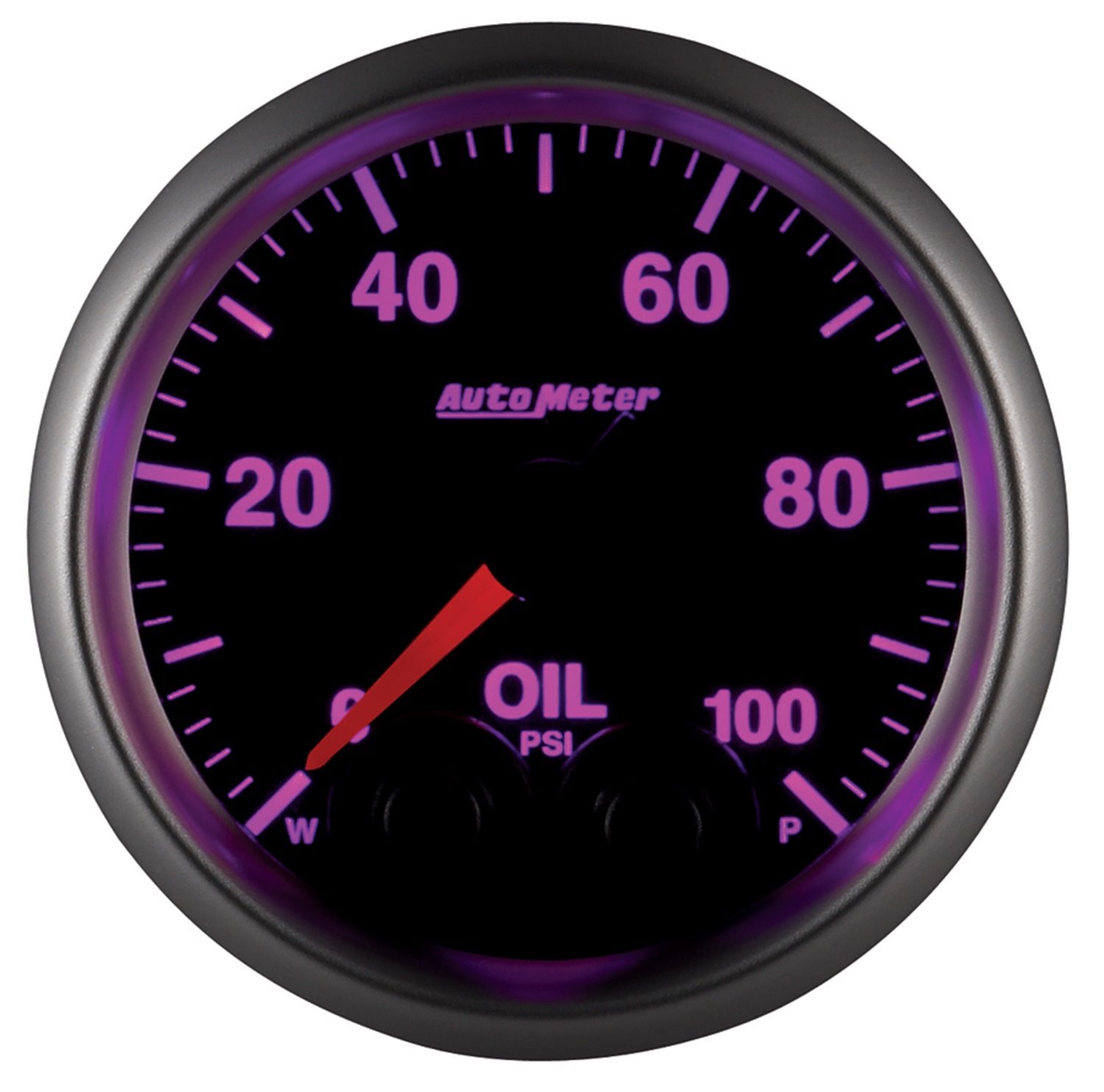

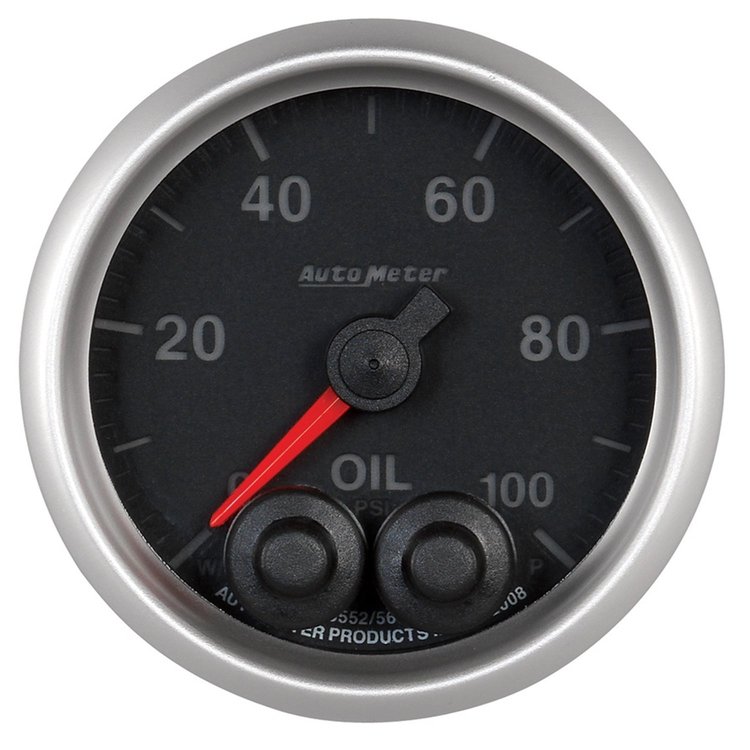

Elite Series Oil Pressure Gauge 0-100 PSI
$26399
Ships on 09/09/2026
Lowest Price Guarantee2-1/16" Full Sweep Electrical GaugesWith Pro Control & Data Acquisition Outputs
- Elite Series Oil Pressure Gauge
- 0-100 PSI
- Includes 1/8" NPT sending unit & 8' wiring harness
- 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
- Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions like lights, fans, switches, & pumps allow drivers to focus on the competition while the gauges control key vehicle systems
- Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
- Acquire data for later review with one-touch Peak Recall functionality
- Data logger 0-5V output provides ECU and data systems with vital information
- Gauge kit includes 1/8" NPT stainless steel pressure transducer, 1/4" NPT adapter, wiring harness, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
The life blood of your engine, a lack of oil pressure is one of the most catastrophic scenarios that can happen. Knowing the precise pressure is critical to both its longevity and performance, as well as your peace of mind. AutoMeter's Digital Stepper Motor Oil Pressure Gauge utilizes the most advanced technology on the market to deliver accuracy and durability you won't find anywhere else. Our advanced 1/8" NPT solid state pressure transducer (included) provides the best possible measurements with unparalleled resistance to vibration and heat. A direct plug in wiring harness is also included for ease of installation and data logging is available thanks to a .5 - 4.5v analog output.
Part TypeGauge
BrandAUTO METER
Package Height4.5
Package Width4.5
Package Length5.1
Weight0.8 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Gauge Size (Mm)52.40 diameter
Gauge Face ColorBlack
Bezel ColorBrushed Aluminum
SweepFull sweep
Size2.063 in (52.4 mm)
Bezel FinishSilver
Gauge StyleAuto Meter Elite Series
Gauge Number ColorWhite
Lighting TypeLED
Gauge TypeOil Pressure
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Pressure0-100 PSI
Dial (Face Color)Black
Gauge Size (In.)2 1/16 diameter
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Gauge Range (Psi)0-100
Part FitmentUniversal
Lighting Color7 User Selectable Colors
Vendor Part Number5652
Package Qty1
Package TypeEA
