Vehicle Info NeededAUTO METERPART NUMBER: 105-5655-05702

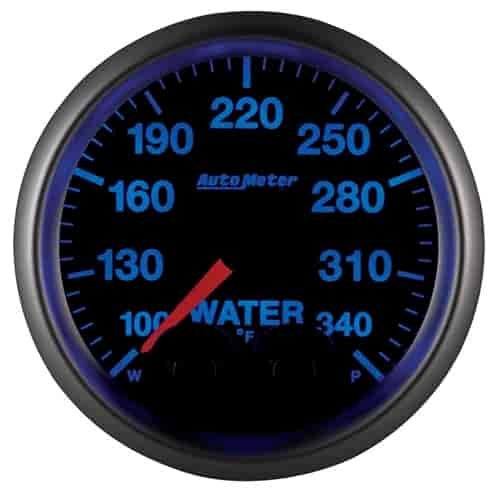

WATER TEMP 2 1/16 340F W/PEAK/WARN ELITE W/O PRO-CONTROL
$24748
Ships on 09/09/2026
Lowest Price Guarantee- WATER TEMP 2 1/16 340F W/PEAK/WARN ELITE W/O PRO-CONTROL
- 7 User-Selectable Lighting Colors
- Full Dial Color Change At The Configurable Shift Point
- Pit Road Speed Functions For Oval Track Use
- Can Be Mounted In The Pedestal Mount Or In The Dash
- 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
- This specialty variant gauge is NASCAR approved and eliminates the Pro-Control output and wiring present on the standard production Elite series model
- Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
- Acquire data for later review with one-touch Peak Recall functionality
- Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
Engines don't like high water temperatures, Heat is the enemy of performance and reliability. Keep tabs on your temps with the most accurate, quickest responding water temperature gauge on the market. AutoMeter's advanced 1/8" NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation.
Part TypeGauge
BrandAUTO METER
Package Height4.25
Package Width4.25
Package Length4.75
Weight0.8 PG
Part CategoryPerformance Parts
Temperature100-340 F
Size2.063 in (52.4 mm)
Part FitmentUniversal
Dial (Face Color)Black
Vendor Part Number5655-05702
Package Qty1
Package TypeEA
