Vehicle Info NeededAUTO METERPART NUMBER: 105-5655

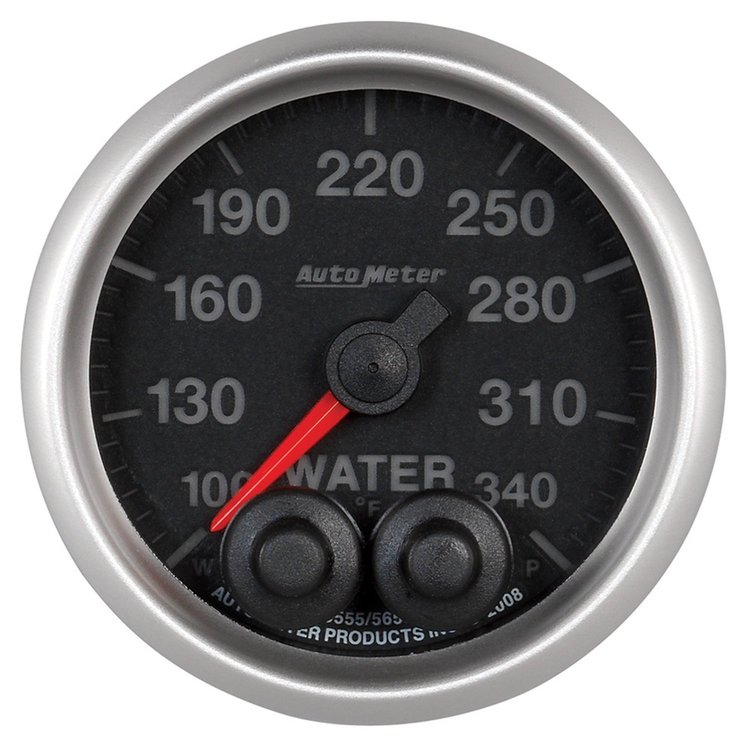

Elite Series Water Temperature Gauge 100-340°
$23299
Ships on 09/09/2026
Lowest Price Guarantee2-1/16" Full Sweep Electrical GaugesWith Pro Control & Data Acquisition Outputs
- Elite Series Water Temperature Gauge
- 100-340°
- Includes 1/8" NPT Sending unit, 3/8" & 1/2" NPT adapters, 8" wiring harness

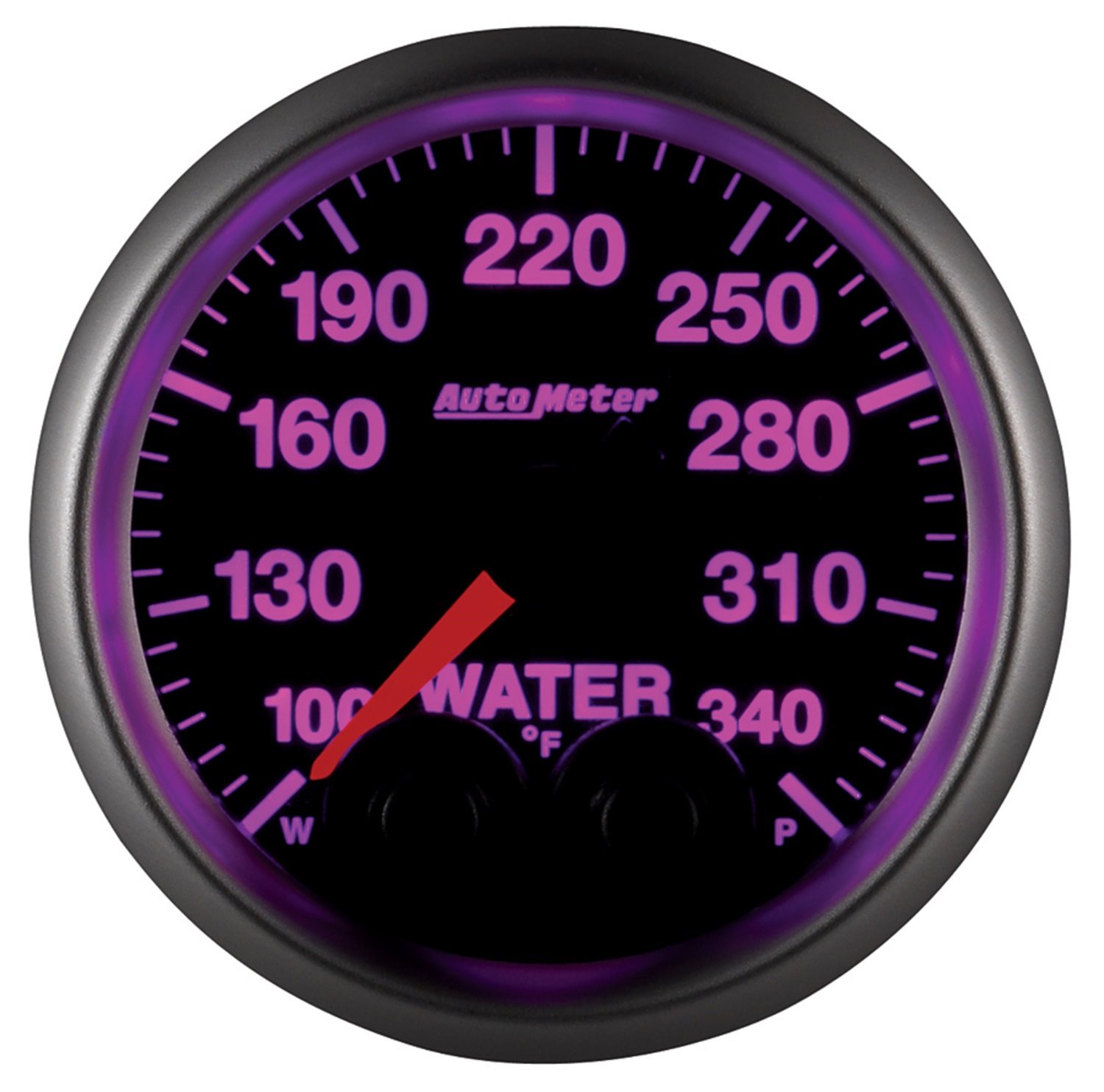

- 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
- Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions like lights, fans, switches, & pumps allow drivers to focus on the competition while the gauges control key vehicle systems
- Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
- Acquire data for later review with one-touch Peak Recall functionality
- Data logger 0-5V output provides ECU and data systems with vital information
- AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
Engines don't like high water temperatures, Heat is the enemy of performance and reliability. Keep tabs on your temps with the most accurate, quickest responding water temperature gauge on the market. AutoMeter's advanced 1/8" NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation.
Part TypeGauge
BrandAUTO METER
Package Height4.5
Package Width4.6
Package Length5.2
Weight0.84 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Temperature100-340 F
Gauge Size (Mm)52.40 diameter
Gauge Face ColorBlack
Bezel ColorBrushed Aluminum
SweepFull sweep
Size2.063 in (52.4 mm)
Bezel FinishSilver
Gauge StyleAuto Meter Elite Series
Gauge Number ColorWhite
Gauge Range100-340 degrees F
Lighting TypeLED
Gauge TypeWater Temperature
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Black
Gauge Size (In.)2 1/16 diameter
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting Color7 User Selectable Colors
Vendor Part Number5655
Package Qty1
Package TypeEA
