Elite Series Transmission Temperature Gauge 100-260°
InfoVehicle Info Needed
AUTO METERPART NUMBER: 105-5658

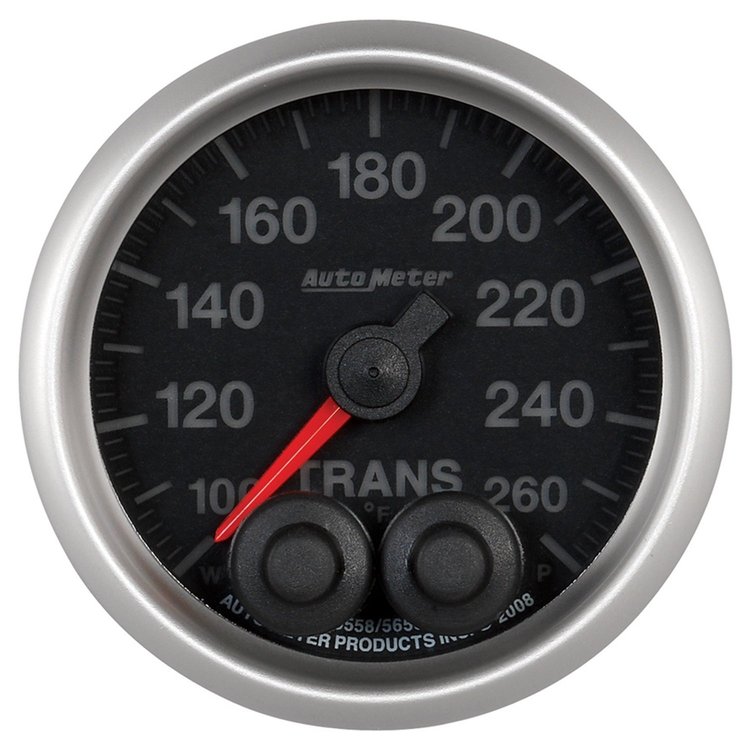

Elite Series Transmission Temperature Gauge 100-260°

$24299
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

2-1/16" Full Sweep Electrical Gauges
  • With Pro Control & Data Acquisition Outputs
    • Elite Series Transmission Temperature Gauge
    • 100-260°

    • Includes 1/8" NPT sending unit, 3/8" & 1/2" NPT adapters, 8' wiring harness

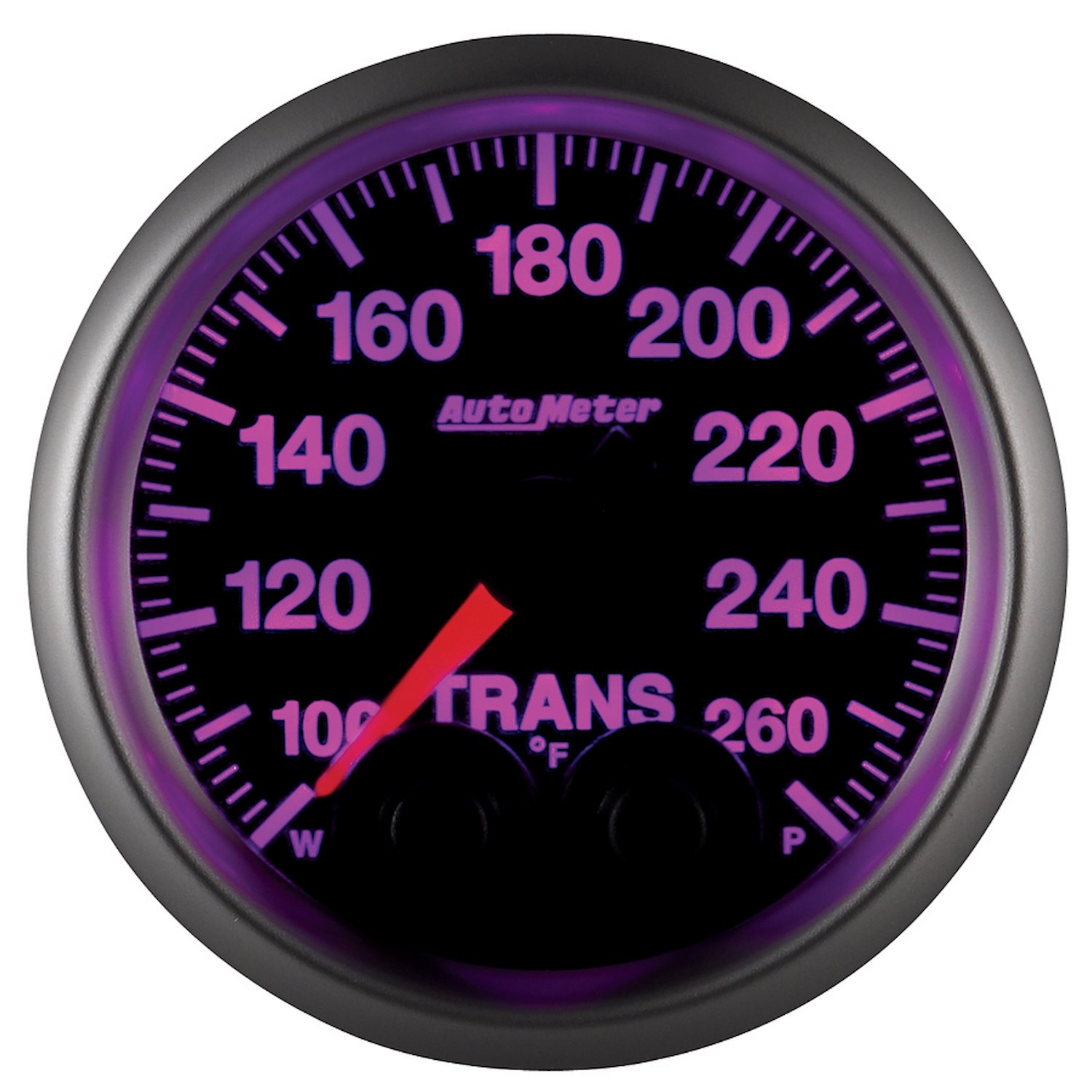

    • 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
    • Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions like lights, fans, switches, & pumps allow drivers to focus on the competition while the gauges control key vehicle systems
    • Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
    • Acquire data for later review with one-touch Peak Recall functionality
    • Data logger 0-5V output provides ECU and data systems with vital information
    • AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
    • The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
    • Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Digital Stepper Motor Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. AutoMeter's most advanced 1/8" NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option.

    Part TypeGauge
    BrandAUTO METER
    Package Height4.4
    Package Width4.7
    Package Length4.9
    Weight0.85 PG
    Part CategoryPerformance Parts
    Sending Unit IncludedYes
    Liquid-FilledNo
    Gauge Size (Mm)52.40 diameter
    Gauge Face ColorBlack
    Bezel ColorBrushed Aluminum
    SweepFull sweep
    Size2.063 in (52.4 mm)
    Bezel StyleSuper Bezel
    QuantitySold individually
    Dial (Face Color)Black
    Bezel FinishSilver
    Gauge Size (In.)2 1/16 diameter
    Pointer ColorFluorescent Red
    Gauge StyleAuto Meter Elite Series
    Gauge Number ColorWhite
    Gauge SeriesAnalog
    Gauge Range100-260 degrees F
    Oem ReplacementNo
    Lighting TypeLED
    Part FitmentUniversal
    Lighting Color7 User Selectable Colors
    Gauge TypeTransmission temperature
    Sending UnitElectrical
    Vendor Part Number5658
    Package Qty1
    Package TypeEA
