Vehicle Info NeededAUTO METERPART NUMBER: 105-5668

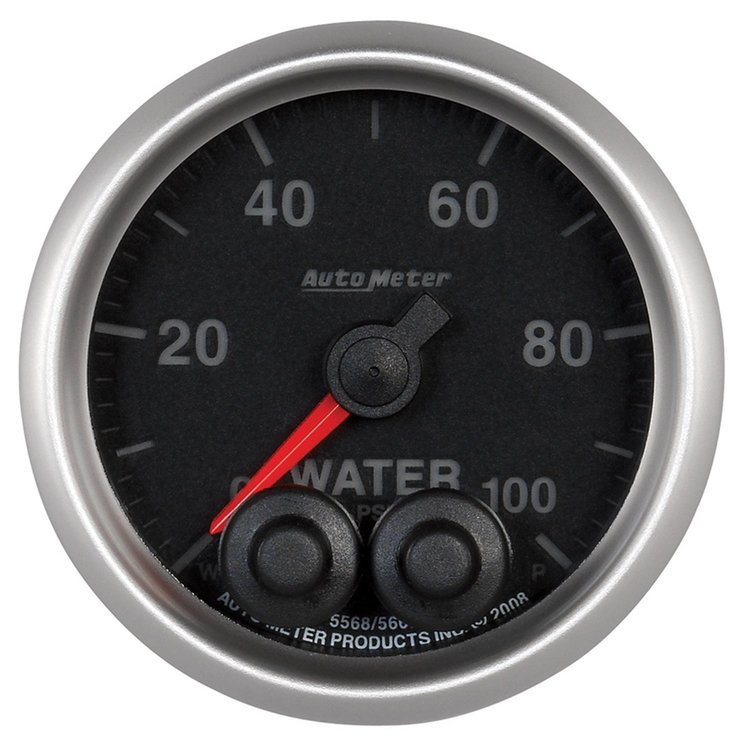

Elite Series Water Pressure Gauge 0-100 PSI
Size :
$25999
Ships on 09/09/2026
Lowest Price Guarantee2-1/16" Full Sweep Electrical GaugesWith Pro Control & Data Acquisition Outputs
- Elite Series Water Pressure Gauge
- 0-100 PSI
- Includes 1/8" NPT sending unit & 8' wiring harness

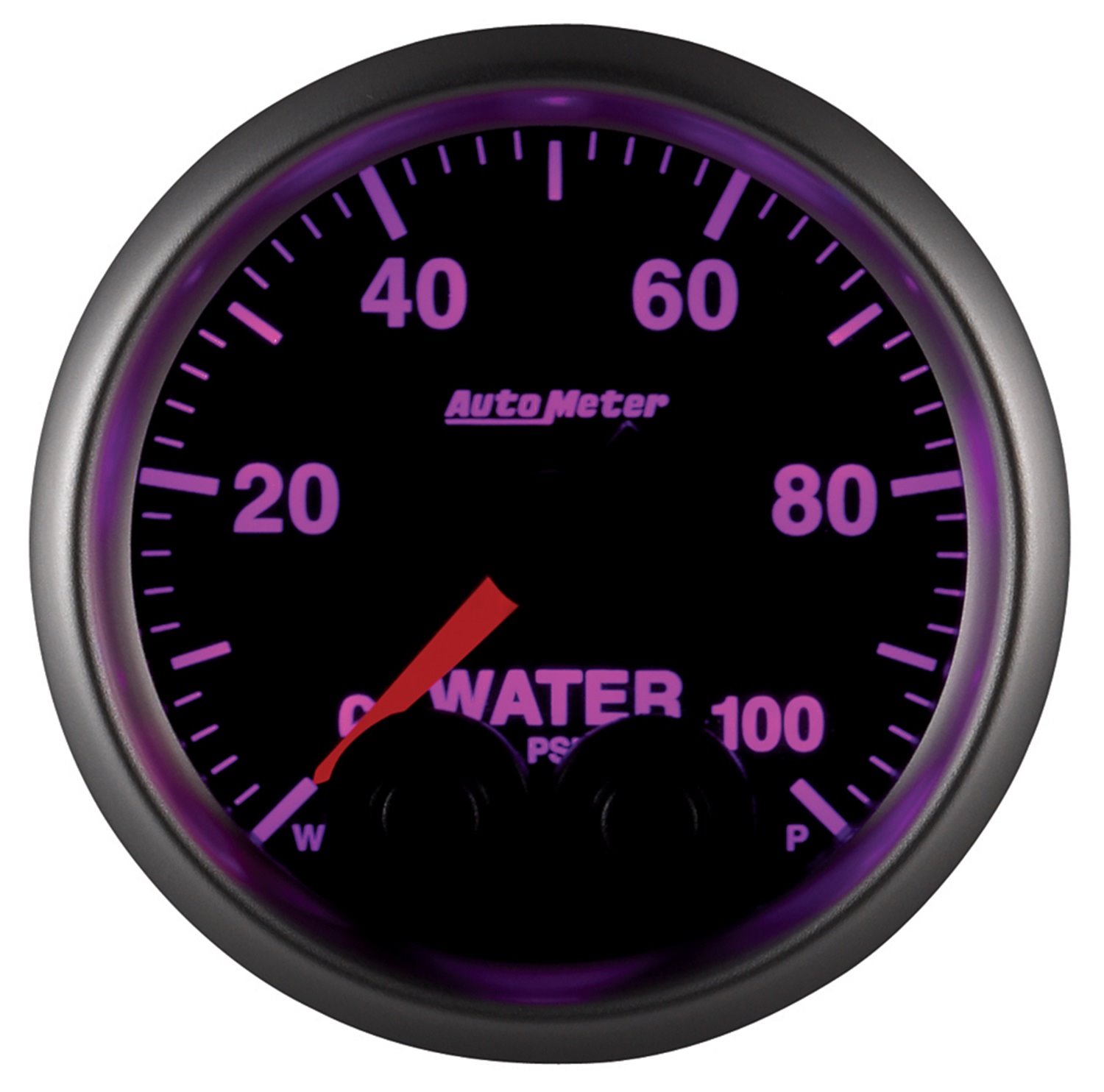

- 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
- Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions like lights, fans, switches, & pumps allow drivers to focus on the competition while the gauges control key vehicle systems
- Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
- Acquire data for later review with one-touch Peak Recall functionality
- Data logger 0-5V output provides ECU and data systems with vital information
- AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
From high banked ovals to Saturday night 1/4 miles, knowing that you've got proper cooling system pressure is critical in any severe service application. AutoMeter's Digital Stepper Motor Water Pressure Gauge utilizes the most advanced technology on the market to deliver accuracy and durability you won't find anywhere else. Our advanced 1/8" NPT solid state pressure transducer (included) provides the best possible measurements with unparalleled resistance to vibration and heat. A direct plug in wiring harness is also included for ease of installation and data logging is available thanks to a .5 - 4.5v analog output.
Elite series gauges were developed with top racing teams & drivers to achieve the ultimate in precision, visibility and functionality.
Features:
- 7 user selectable colors to match visual preferences of driver and visibility conditions
- Expanded viewable area while still maintaining a compact 2-1/16" size
- Powered by advanced circuit designs for improved electrical noise resistance and precision.
Show More
- Competition series gauges feature solid state, data acquisition grade sending units, digital stepper motor movements, and bright white "always on" hi def LED through the dial illumination.
- Enhanced with pro-control functionality, these instruments allow drivers to focus on the competition while the gauges control key vehicle systems & alert the driver to warning conditions.
- Streamline your setup with built in pro control circuits with custom programmable activation and deactivation points for key functions like lights, fans, switches and pumps.
- Set custom alert high and low points specific to your vehicle and receive full dial warning notification to highlight the need for driver attention.
- Acquire data for later review with one touch peak recall functionality.
- Data logger 0-5V output provides ECU and data systems with vital info.
Part TypeGauge
Product LineAuto Meter Elite Series Gauges
BrandAUTO METER
Package Height4.6
Package Width4.7
Package Length5.1
Weight0.82 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Liquid-FilledNo
Gauge Size (Mm)52.40 diameter
Gauge Face ColorBlack
Bezel ColorBrushed Aluminum
SweepFull sweep
Size2.063 in (52.4 mm)
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Black
Bezel FinishSilver
Gauge Size (In.)2 1/16 diameter
Pointer ColorFluorescent Red
Gauge StyleAuto Meter Elite Series
Gauge Number ColorWhite
Gauge SeriesAnalog
Oem ReplacementNo
Lighting TypeLED
Gauge Range (Psi)0-100
Part FitmentUniversal
Lighting Color7 User Selectable Colors
Gauge TypeWater pressure
Sending UnitElectrical
Vendor Part Number5668
Package Qty1
Package TypeEA
