Vehicle Info NeededAUTO METERPART NUMBER: 105-5670

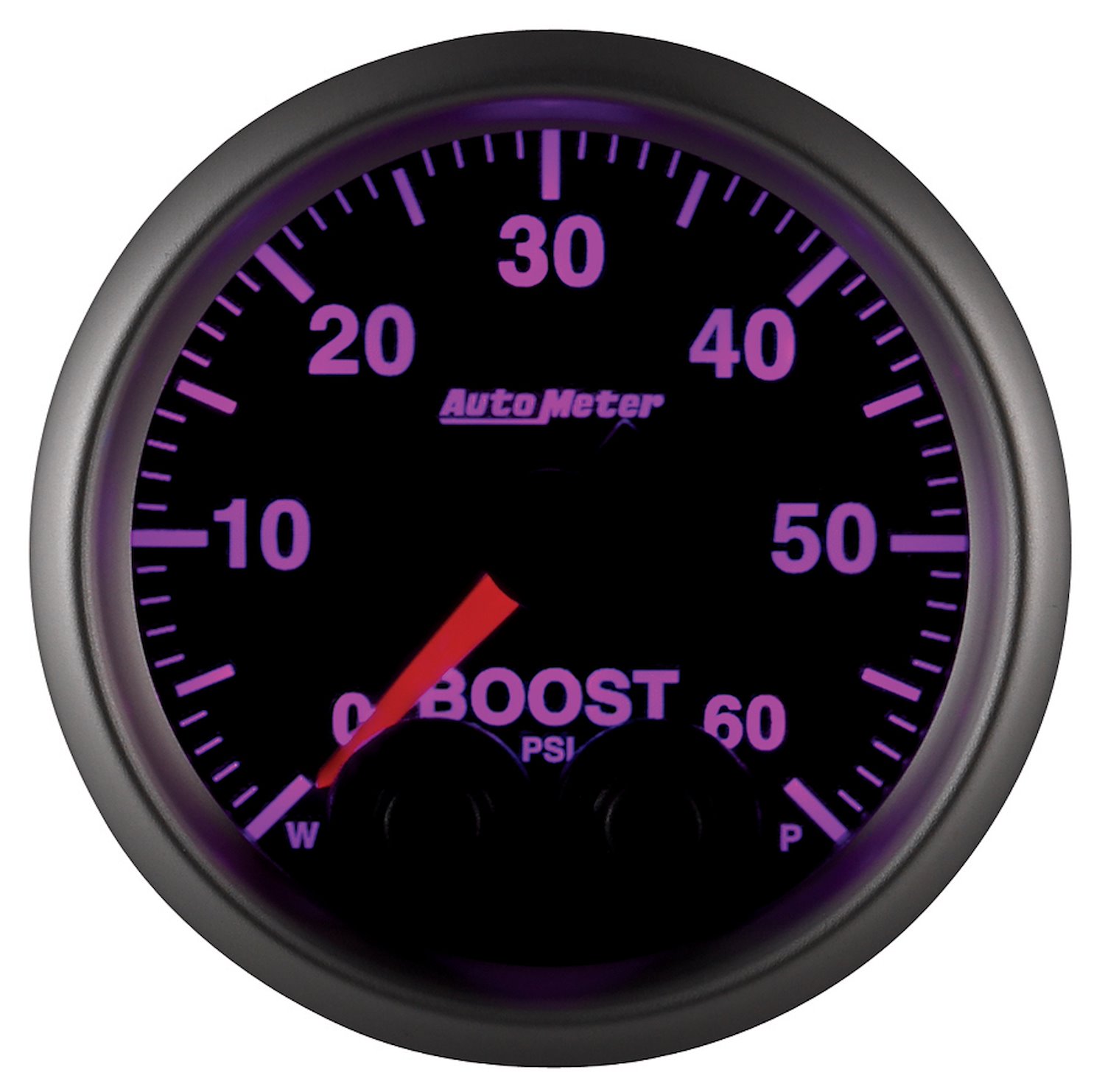

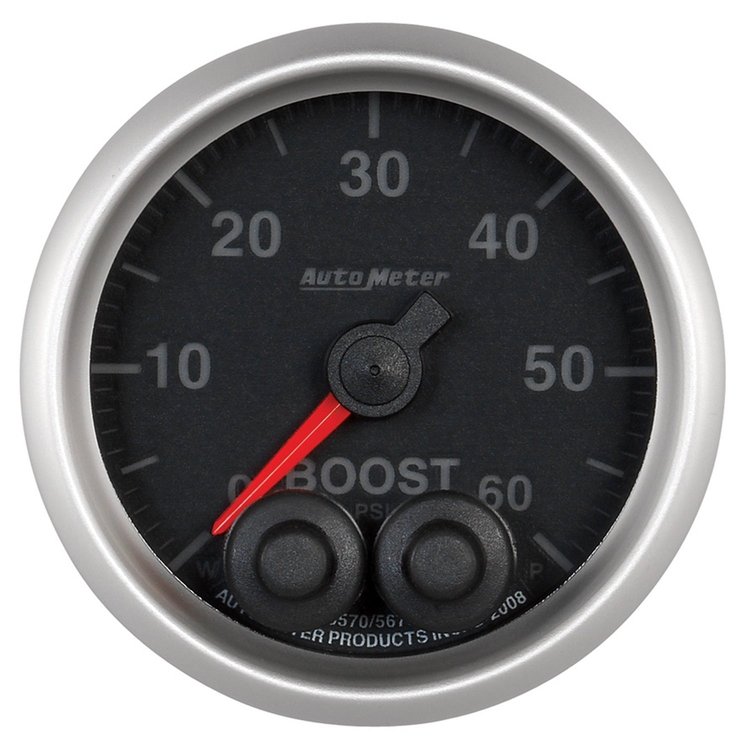

Elite Series Boost Gauge 0-60 PSI
$28399
Ships on 09/09/2026
Lowest Price Guarantee2-1/16" Full Sweep Electrical GaugesWith Pro Control & Data Acquisition Outputs
- Elite Series Boost Gauge
- 0-60 PSI
- Includes 1/8" NPT sending unit and 8' wiring harness
- 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
- Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions like lights, fans, switches, & pumps allow drivers to focus on the competition while the gauges control key vehicle systems
- Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
- Acquire data for later review with one-touch Peak Recall functionality
- Data logger 0-5V output provides ECU and data systems with vital information
- Gauge kit includes 1/8" NPT stainless steel pressure transducer, wiring harness, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
Forced induction applications require precise monitoring of the boost pressure being created by your turbo or supercharger to get the most power safely from your engine. AutoMeter's Digital Stepper Motor Boost Gauge provides the most accurate reading available, unparalleled response time and smooth needle movement. Designed for diesel or extreme boost applications, these gauges include a highly advanced 1/8" NPT Pressure Transducer and wiring harness for ease of installation. Data Logging is also possible thanks to an analog .5 - 4.5v output.
Part TypeGauge
BrandAUTO METER
Package Height4.5
Package Width4.6
Package Length5.1
Weight0.75 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Gauge Size (Mm)52.40 diameter
Gauge Face ColorBlack
Bezel ColorBrushed Aluminum
SweepFull sweep
Size2.063 in (52.4 mm)
Bezel FinishSilver
Gauge StyleAuto Meter Elite Series
Gauge Number ColorWhite
Boost0-60 PSI
Lighting TypeLED
Gauge TypeBoost pressure
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Black
Gauge Size (In.)2 1/16 diameter
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Gauge Range (Psi)0-60
Part FitmentUniversal
Lighting Color7 User Selectable Colors
Vendor Part Number5670
Package Qty1
Package TypeEA
