Made in USA
Elite Series Wideband Gauge
InfoVehicle Info Needed
AUTO METERPART NUMBER: 105-5678

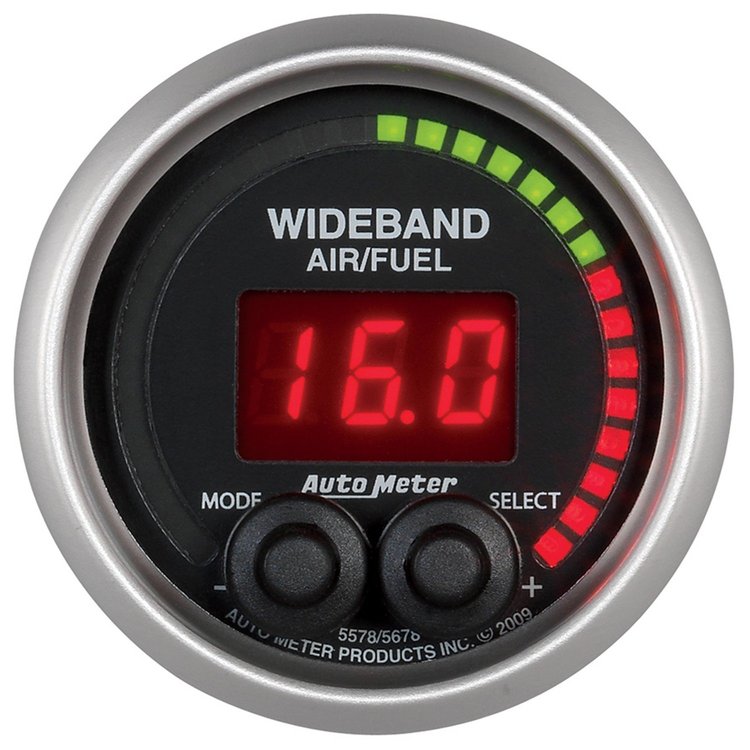

Elite Series Wideband Gauge

$37999
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

2-1/16" Full Sweep Electrical Gauges
  • With Pro Control & Data Acquisition Outputs
    • Elite Series Wideband Gauge

    • Includes Bosch 02 sensor & wiring harness
    • wideband does not change illumination color
    • Gauge kit includes custom tuned .1 AFR Resolution Bosch LSU4.2 Sensor, 8ft. wiring harness, 304 stainless steel weld-in bung, mounting hardware, and detailed instructions for installation
    • 0-5V data output feed for ECU, data acquisition unit, or Laptop tuning
    • User programmable range for Rich/Stoic/Lean conditions
    • Peak recall/memory
    • 10:1 to 20:1 AFR Range for Gasoline Applications
    • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
    • User Programmable Warning Function
    • Display data in Lambda or numerical A/F ratio
    • Knowing the exact air/fuel mixture running through your engine is the most important factor to extracting the highest levels of performance and durability. Not all wideband gauges are created equal. AutoMeter utilizes an advanced calibration method that automatically calibrates your gauge on every startup to assure you of the highest degree of accuracy over the entire lifespan of your sensor (no free air calibration is ever necessary). Compatible with nearly all fuel types, the AutoMeter Pro Wideband has a configurable display to pinpoint the exact range you want to keep an eye on. An advanced peak recall function and lean warning system make sure you're safely making power, whether on the track or on the street. An automatically dimming display tailors light output for any condition. Data logging output is included for one wire or two wire systems in both lambda or AFR. Our specially designed O2 sensor and wiring harness are included for ease of installation. Quite simply, there isn't a more accurate or easy to live with wideband gauge available on the market.

    Part TypeGauge
    BrandAUTO METER
    Package Height5.4
    Package Width5.5
    Package Length5.6
    Weight1.25 PG
    Part CategoryPerformance Parts
    Sending Unit IncludedYes
    Gauge Size (Mm)52.40 diameter
    Gauge Face ColorBlack
    Bezel ColorBrushed Aluminum
    ShapeRound
    SweepDigital numeric
    Size2.063 in (52.4 mm)
    Bezel StyleSuper Bezel
    QuantitySold individually
    Dial (Face Color)Black
    Bezel FinishSilver
    Gauge Size (In.)2 1/16 diameter
    Pointer ColorN/A
    Gauge StyleAuto Meter Elite Series
    Gauge Number ColorWhite
    Gauge SeriesDigital
    Gauge RangeLean-rich
    Oem ReplacementNo
    Lighting TypeDigital LED
    Part FitmentUniversal
    Lighting ColorRed LCD/Red Yellow Green Segments
    Gauge TypeAir/Fuel ratio
    Sending UnitElectrical
    Vendor Part Number5678
    Package Qty1
    Package TypeEA
