Made in USA

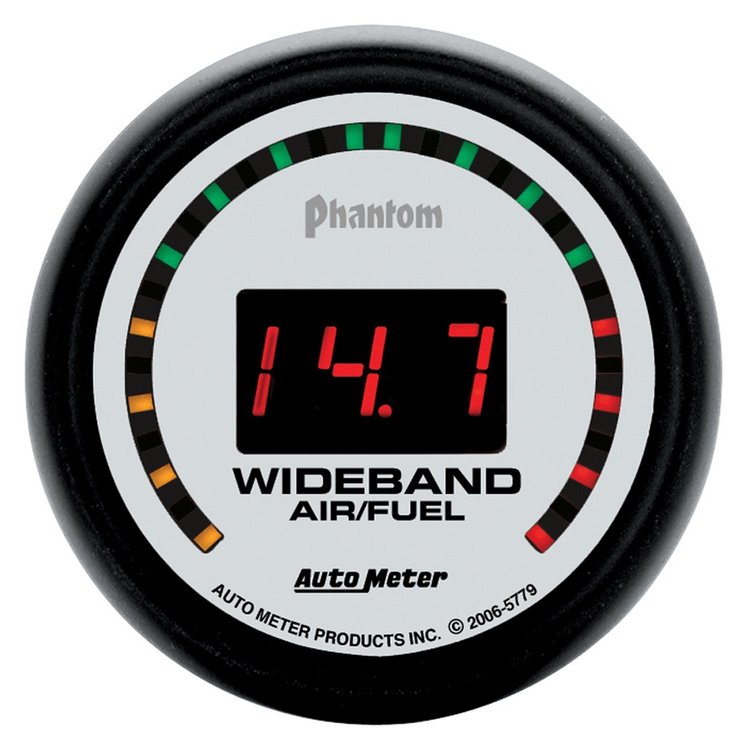

Phantom Wideband Air/Fuel Gauge 2-1/16" electrical
InfoVehicle Info Needed
AUTO METERPART NUMBER: 105-5779

Phantom Wideband Air/Fuel Gauge 2-1/16" electrical

$24199
ShippingShips on 09/10/2026
Lowest PriceLowest Price Guarantee

Wideband Air/Fuel Electrical Gauges
    Phantom Wideband Air/Fuel Gauge
  • 2-1/16" electrical
  • 10:1 - 17:1 AFR
  • Digital

    Includes Bosch o2 sensor
  • Gauge kit includes custom tuned .1 AFR Resolution Bosch LSU4.2 Sensor, 8ft. wiring harness, 304 stainless steel weld-in bung, mounting hardware, and detailed instructions for installation
  • 0-4v data output feed for ECU, data acquisition unit, or Laptop tuning
  • Suitable for use with gasoline powered engines
  • Digital segment display and LED radial bar graph display
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Taking the core features from AutoMeter's Pro Wideband, the Street Wideband provides the most important functions necessary to make sure you're extracting the most power possible, safely. Our advanced auto calibration system automatically calibrates your gauge on every startup to assure you of the highest degree of accuracy over the entire lifespan of your sensor (no free air calibration is ever necessary). Designed for gasoline applications, this wideband gauge provides the same degree of accuracy and response as the Pro version, but at a reduced cost. Data logging output is included for one wire or two wire systems. Our specially designed O2 sensor and wiring harness are included for ease of installation.

Part TypeGauge
BrandAUTO METER
Package Height5.4
Package Width5.5
Package Length5.5
Weight1.15 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Gauge Size (Mm)52.40 diameter
Gauge Face ColorWhite
Bezel ColorBlack
ShapeRound
SweepDigital numeric
Size2.063 in (52.4 mm)
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)White
Bezel FinishBlack
Gauge Size (In.)2 1/16 diameter
Pointer ColorN/A
Gauge StyleAuto Meter Phantom II
Gauge Number ColorRed
Gauge SeriesDigital
Gauge RangeLean-rich
Oem ReplacementNo
Lighting TypeDigital LED
Part FitmentUniversal
Lighting ColorRed LCD/Red Yellow Green Segments
Gauge TypeAir/Fuel ratio
Sending UnitElectrical
Vendor Part Number5779
Package Qty1
Package TypeEA
