Vehicle Info NeededAUTO METERPART NUMBER: 105-5796

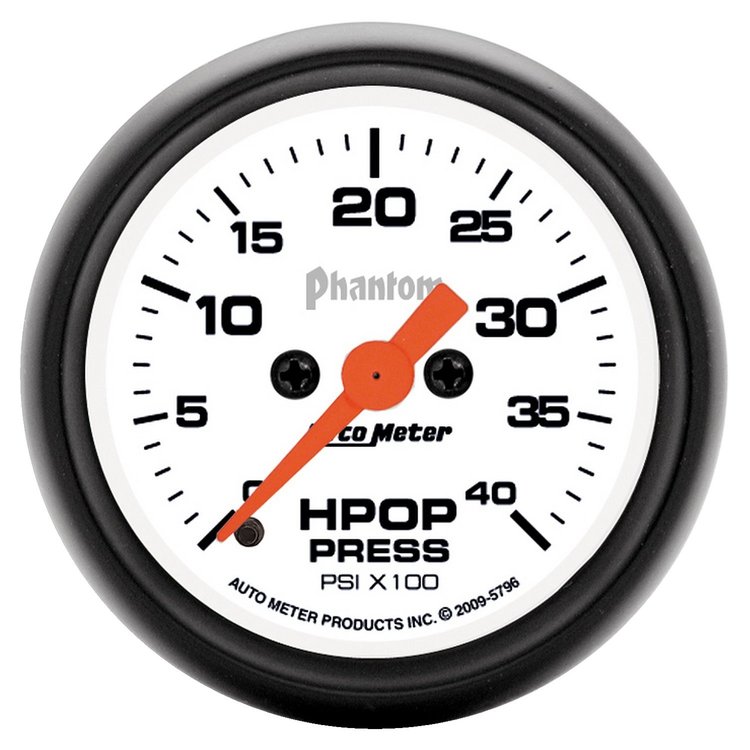

Phantom HPOP Pressure Gauge 2-1/16" electrical
$18999
Ships on 09/08/2026
Lowest Price GuaranteeHPOP Pressure Electrical Gauges
- Phantom HPOP Pressure Gauge
- 2-1/16" electrical
- 1994-07 Ford 7.3L/6.0L Powerstroke
- 0-4000 psi
Connects to original equipment High Pressure Oil Pump sensor wiring. - Traditional incandescent lighting illuminates around the perimeter of the dial
- Gauge kit includes wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- Included wiring harness connects to original equipment High Pressure Oil Pump sensor wiring.
- For use with 1994-2003 7.3L & 2003-2007 6.0L Ford Powerstroke Engines ONLY
- AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Ultra high pressures in modern direct injected diesel applications require precise monitoring to assure the longevity and power output of your engine. Using AutoMeter's advanced Digital Stepper Motor Drive, this gauge provide the most accurate possible reading, professional grade reliability and smooth pointer movement. Connects directly to your factory sensor with an included wiring harness.
Part TypeGauge
BrandAUTO METER
Package Height4.5
Package Width5.0
Package Length5.0
Weight0.55 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Liquid-FilledNo
Gauge Size (Mm)52.40 diameter
Gauge Face ColorWhite
Bezel ColorBlack
SweepFull sweep
Size2.063 in (52.4 mm)
Bezel StyleSuper Bezel
QuantitySold individually
Pressure0-4000 PSI
Dial (Face Color)White
Gauge Size (In.)2 1/16 diameter
Pointer ColorFluorescent Red
Gauge StyleAuto Meter Phantom
Gauge SeriesAnalog
Oem ReplacementNo
Lighting TypeIncandescent
Gauge Range (Psi)0-4,000
Part FitmentDirect Fit
Lighting ColorWhite Incandescent
Gauge TypeOil Pressure
Vendor Part Number5796
Package Qty1
Package TypeEA
