Vehicle Info NeededAUTO METERPART NUMBER: 105-5801

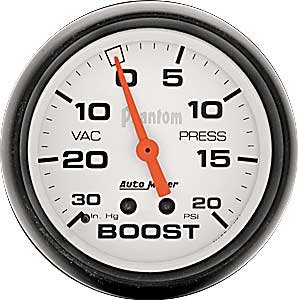

Phantom Vacuum/Boost Gauge 2-5/8" mechanical
$10299
1 left in stock
Ships Today
Lowest Price GuaranteeVacuum/Boost Mechanical Gauges
- Phantom Vacuum/Boost Gauge
- 2-5/8" mechanical
- 30 Hg/20 psi
Includes T-fitting and 10' nylon tubing - Traditional incandescent lighting illuminates around the perimeter of the dial
- AutoMeter's race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Gauge kit includes 1/8" nylon line, T-Fitting, vacuum fitting, compression fittings, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- Mechanical movements provide accuracy and durability even in the harshest environments
The standard in the industry, AutoMeter's Mechanical Boost/Vac Gauges have found their way into more builds than any other. Using a patented, high precision bourdon tube meter movement, there isn't another gauge on the market that can lay claim to the levels of accuracy or durability you'll find here. A simple 1/8" NPT pressure connection requires no electrical hookup for operation. Includes 1/8" NPT fittings and nylon line kit.
Part TypeGauge
BrandAUTO METER
Package Height5.4
Package Width5.6
Package Length5.7
Weight0.75 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Gauge Size (Mm)67.00 diameter
Gauge Face ColorWhite
Bezel ColorBlack
SweepFull sweep
Size2.625 in (66.7 mm)
Bezel FinishBlack
Vacuum0-30 in. Hg-Vac
Gauge StyleAuto Meter Phantom
Gauge Number ColorBlack
Boost20 PSI
Lighting TypeIncandescent
Gauge TypeBoost/Vacuum
Sending UnitMechanical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)White
Gauge Size (In.)2 5/8 diameter
Gauge Range (In.) (Psi)30 Hg/20
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number5801
Package Qty1
Package TypeEA
