Made in USA

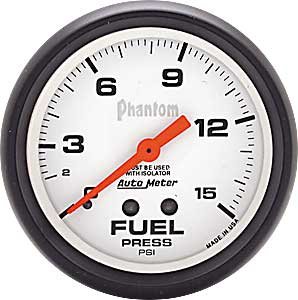

Phantom Fuel Pressure Gauge 2-5/8" mechanical
InfoVehicle Info Needed
AUTO METERPART NUMBER: 105-5813

Phantom Fuel Pressure Gauge 2-5/8" mechanical

$22399
ShippingShips on 09/08/2026
Lowest PriceLowest Price Guarantee

Fuel Pressure Mechanical Gauges
    Phantom Fuel Pressure Gauge
  • 2-5/8" mechanical
  • 0-15 psi
  • Isolator included

    Gauge may be installed inside vehicle/driver's compartment by mounting isolator in engine compartment (4' braided hose to connect isolator to gauge is included), but braided stainless steel hose to connect isolator to fuel source is not included.
  • Includes bulb and socket assembly with red and green bulb covers
  • Includes 4ft. Braided stainless steel hose, also requires #4 braided hose to connect isolator to fuel source
  • Use of isolator allows gauge to be mounted inside vehicle
  • Includes gauge mounting hardware and installation instructions
  • Seeing the exact fuel pressure on your vehicle can mean the difference between extracting the most performance safely and expensive failures. AutoMeter's Mechanical Fuel Pressure Gauge will precisely measure your exact fuel pressure at levels of accuracy previously unheard of even in professional gauges. Designed for carbureted applications, a simple -4an connection makes installation easy. Don't take chances with your investment; a precise fuel pressure gauge could be the cheapest insurance you've ever bought. For the safety of the operator, a fuel pressure isolator is included.

Part TypeGauge
BrandAUTO METER
Package Height5.8
Package Width6.4
Package Length6.5
Weight1.85 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Gauge Size (Mm)67.00 diameter
Gauge Face ColorWhite
Bezel ColorBlack
SweepFull sweep
Size2.625 in (66.7 mm)
Bezel FinishBlack
Gauge StyleAuto Meter Phantom
Gauge Number ColorBlack
Lighting TypeIncandescent
Gauge TypeFuel Pressure
Sending UnitMechanical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Pressure0-15 PSI
Dial (Face Color)White
Gauge Size (In.)2 5/8 diameter
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Gauge Range (Psi)0-15
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number5813
Package Qty1
Package TypeEA
