Vehicle Info NeededAUTO METERPART NUMBER: 105-5832-00406

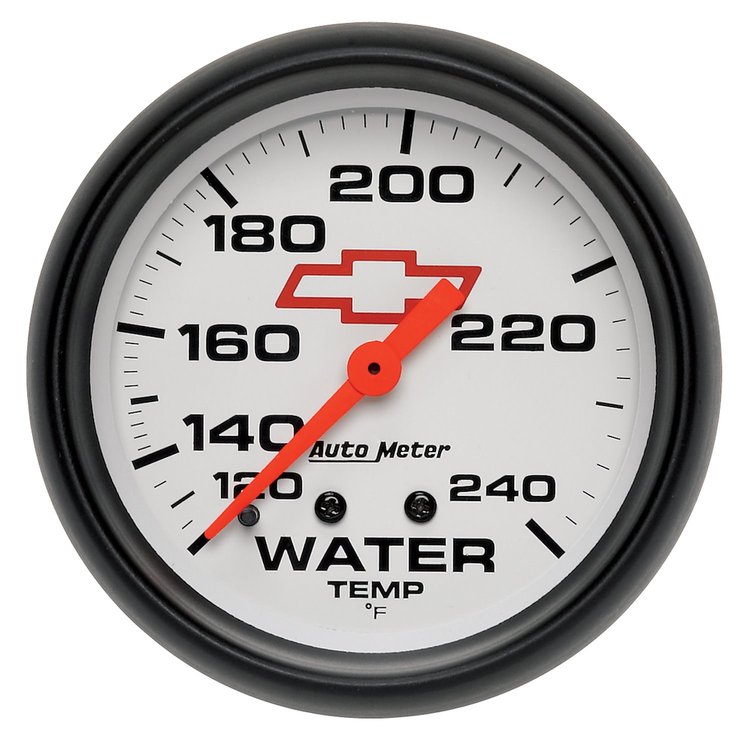

Officially Licensed GM Water Temperature Gauge 2-5/8" Mechanical (Full Sweep)
$13499
Ships on 09/14/2026
Lowest Price Guarantee- Officially Licensed GM Water Temperature Gauge
- 2-5/8" Mechanical (Full Sweep)
- 120°-240° F
- Red Pointer For Quick Glance Monitoring
- 1 Year Limited Warranty
- Traditional incandescent lighting illuminates around the perimeter of the dial
- AutoMeter's race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Mechanical movements provide accuracy and durability even in the harshest environments
- Gauge kit includes 1/2" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Engines don't like high water temperatures, Heat is the enemy of performance and reliability. Keep tabs on your temps with the most accurate, quickest responding water temperature gauge on the market. AutoMeter's advanced bourdon tube meter movement provides unparalleled performance in the most demanding applications. A 6" capillary tube and 1/2" NPT mounting nut are included.
Part TypeGauge
BrandAUTO METER
Package Height5.0
Package Width5.7
Package Length5.7
Weight0.95 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Temperature120-240 F
Gauge Size (Mm)67.00 diameter
Gauge Face ColorWhite
Bezel ColorBlack
SweepFull sweep
Size2.625 in (66.7 mm)
Bezel FinishBlack
Gauge StyleAuto Meter Phantom Chevy Bowtie
Gauge Number ColorBlack
Gauge Range120-240 degrees F
Lighting TypeIncandescent
Gauge TypeWater Temperature
Sending UnitMechanical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)White
Gauge Size (In.)2 5/8 diameter
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number5832-00406
Package Qty1
Package TypeEA
