Vehicle Info NeededAUTO METERPART NUMBER: 105-5837

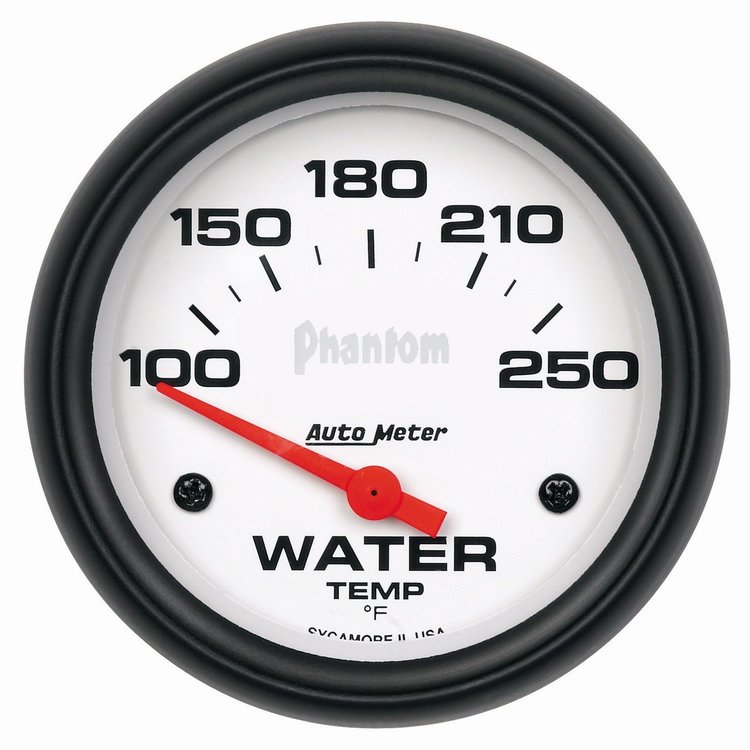

Phantom Water Temperature Gauge 2-5/8" electrical
$8699
1 left in stock
Ships Today
Lowest Price GuaranteeWater Temp Electrical Gauges
- Phantom Water Temperature Gauge
- 2-5/8" electrical
- 100°-250° F
1/8' NPT electric sender and 3/8' and 1/2' NPT adapters included - Traditional incandescent lighting illuminates around the perimeter of the dial
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
A high water temp can be detrimental to an engine. Heat is the enemy of performance and reliability. Keep tabs on your temps with the most trusted water temperature gauge on the market. AutoMeter's advanced 1/8" NPT temperature transducer is included for a simple installation on any application.
Part TypeGauge
BrandAUTO METER
Package Height5.45
Package Width5.5
Package Length5.8
Weight0.79 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Temperature100-250 F
Gauge Size (Mm)67.00 diameter
Gauge Face ColorWhite
Bezel ColorBlack
Sweep90 degree sweep
Size2.625 in (66.7 mm)
Bezel FinishBlack
Gauge StyleAuto Meter Phantom
Gauge Number ColorBlack
Gauge Range100-250 degrees F
Lighting TypeIncandescent
Gauge TypeWater Temperature
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)White
Gauge Size (In.)2 5/8 diameter
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number5837
Package Qty1
Package TypeEA
