Phantom Vacuum/Boost Gauge 2-5/8" electrical
InfoVehicle Info Needed
AUTO METERPART NUMBER: 105-5877

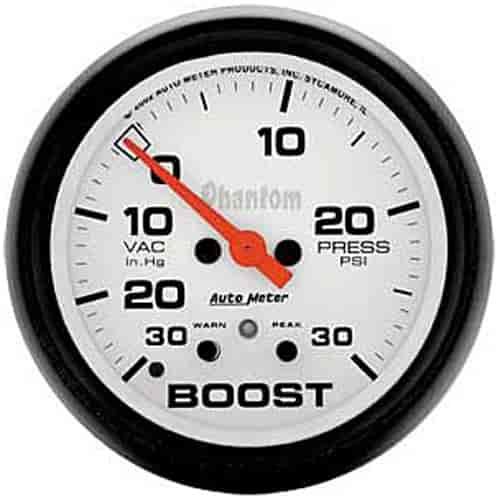

Phantom Vacuum/Boost Gauge 2-5/8" electrical

$29433
ShippingShips on 09/08/2026
Lowest PriceLowest Price Guarantee

Vacuum/Boost Electrical Gauges
    Phantom Vacuum/Boost Gauge
  • 2-5/8" electrical
  • 30 Hg/30 psi

  • Full Sweep
  • Stepper Motor meter movement
  • Includes 8' tubing or wiring harness, MAP sensor, and T-fitting
  • Peak recall/memory
  • User Programmable Warning Function
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Includes data acquisition grade solid-state MAP Sensor, providing unmatched accuracy and durability even in the harshest environments
  • Gauge kit includes MAP Sensor, T-Fitting, nylon tubing, vacuum fittings, wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • Acquire data for later review with one-touch Peak Recall functionality
  • Set a custom alert specific to your vehicle & receive warning notification to highlight the need for driver attention
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
  • Keeping track of the vacuum and boost on your forced induction application is critical for extracting the most power safely while keeping your engine in the powerband. AutoMeter's Digital Stepper Motor Boost/Vacuum Gauges provide the most accurate eadings available, unparalleled response time and smooth needle movement. Taking advantage of AutoMeter's advanced circuitry, these gauges automatically calibrate on every startup to compensate for altitude, barometric pressure and other atmospheric conditions. Includes an advanced MAP sensor and wiring harness for ease of installation. Designed for gasoline engines, a boost only version is also available for diesel or extreme boost applications.

Part TypeGauge
BrandAUTO METER
Package Height6.0
Package Width6.25
Package Length6.25
Weight1.2 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Gauge Size (Mm)67.00 diameter
Gauge Face ColorWhite
Bezel ColorBlack
SweepFull sweep
Size2.625 in (66.7 mm)
Bezel FinishBlack
Vacuum0-30 in. Hg-Vac
Gauge StyleAuto Meter Phantom
Gauge Number ColorBlack
Boost30 PSI
Lighting TypeIncandescent
Gauge TypeBoost/Vacuum
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)White
Gauge Size (In.)2 5/8 diameter
Gauge Range (In.) (Psi)30 Hg/30
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number5877
Package Qty1
Package TypeEA
