Vehicle Info NeededAUTO METERPART NUMBER: 105-5956

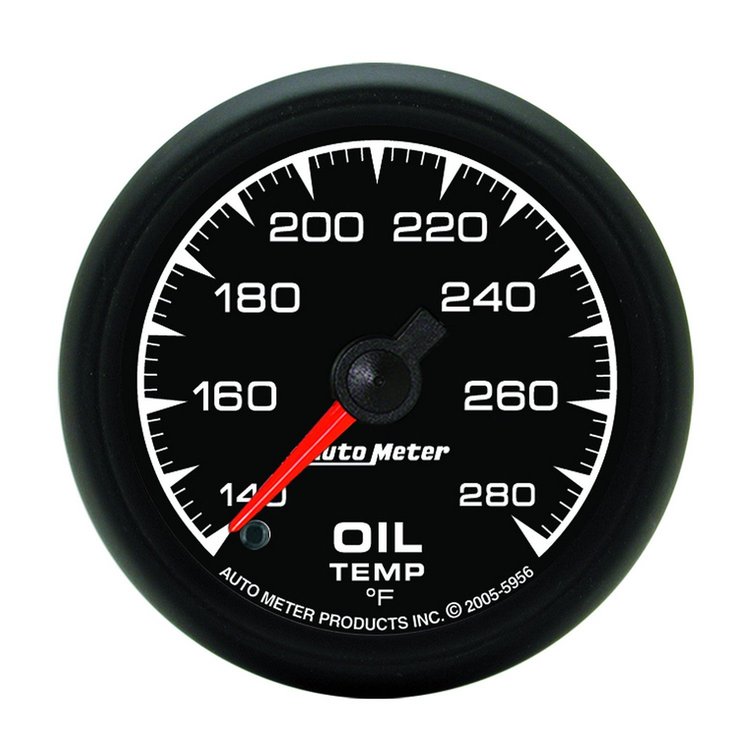

ES Series Oil Temperature Gauge 2-1/16", Electrical
Size :
$17899
Ships on 09/10/2026
Lowest Price Guarantee- ES Series Oil Temperature Gauge
- 2-1/16", Electrical
- Full Sweep
- 140°-280° F
Includes 1/8" NPT sending unit, 3/8" & 1/2" NPT Fittings and 8' wiring harness - Modern red LED through-the-dial lighting provides clear visibility during nighttime use
- Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
- Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you've got the proper oil weight and cooling capacity. Using AutoMeter's advanced 1/8" NPT two wire temperature transducer, you can be assured of the most accurate possible readings of the life blood of your engine. The advanced Digital Stepper Motor Drive keeps needle movement smooth and precise. A direct plug in wiring harness is included for ease of installation.
- Infuse your custom interior with the OE-inspired look and race-precision readings of Auto Meter ES Gauges. Short or full sweep electrical and mechanical stepper models are available with black dials, white markings, and high contrast orange pointers for easy daytime reading. At night, ES instruments come to life with Auto Meter's signature high-definition through-the-dial LED lighting in a vision-friendly shade of red! Also look for patented glowing orange lit pointers, matte black bezels, and quality race-proven meter movements. Buy one today to complement existing gauges or buy a set for a fresh look!
Part TypeGauge
Product LineAuto Meter ES Series Gauges
BrandAUTO METER
Package Height4.6
Package Width4.6
Package Length4.9
Weight0.7 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
MeasurementUS
Temperature140-280 F
Gauge Size (Mm)52.40 diameter
Gauge Face ColorBlack
Bezel ColorBlack
SweepFull sweep
Size2.063 in (52.4 mm)
Bezel FinishBlack
Gauge StyleAuto Meter ES
Gauge Number ColorWhite
Gauge Range140-280 degrees F
Lighting TypeLED
Gauge TypeOil Temperature
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Black
Gauge Size (In.)2 1/16 diameter
TypeElectrical
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorRed
Vendor Part Number5956
Package Qty1
Package TypeEA
