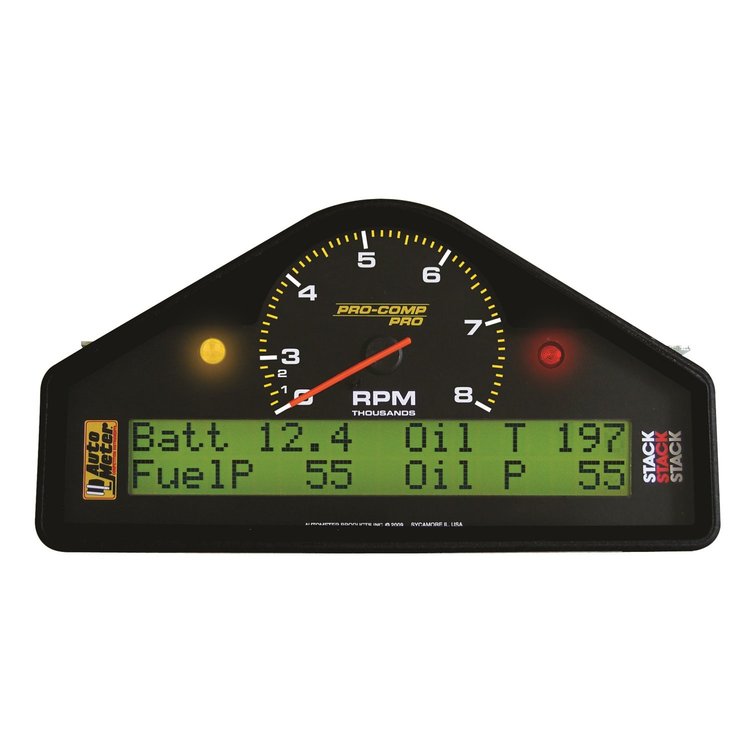

Vehicle Info NeededPro-Comp Pro Race Dash Display RPM: 0-8K
Size :
Ships on 09/10/2026
Lowest Price Guarantee- Pro-Comp Pro Race Dash Display
- RPM: 0-8K
- Speed MPH: 200+
- Oil Press: 0-150 psi
- Oil Temp: 0-300ºF
- Water Temp: 0-300ºF
- Fuel Pressure: 0-150 psi
- Battery Voltage: 8-18v
- Full Sweep, Stepper Motor meter movement.
- Includes 1/8" NPT Sender.
- If mounting temperature sender in a steel fluid pan, use Auto Meter #105-2260
- User Programmable Warning Function
- Peak Recall
- Powered by advanced circuit designs for improved electrical noise resistance and precision.
- Integrated programmable warning light and LCD message display for temperatures, pressures, and battery voltage.
- External plugs provided for shift and warning light activation.
- Dimensions: 7.5" W x 4" H x 2.125" D (to back of MIL connector)
- Includes robust professional wiring harness pre-terminated with mil spec and MSS connectors for ease of installation.
- Operates on most 1-16 cylinder engines with 12V electronic ignitions. Some applications may require DIS Tach Adapter #9117.
- Water, Dust/Dirt, Shock, and Vibration Proof! Fully sealed to IP67 standard.
- Includes white LED backlighting.
- Multiple pre-programmed display layers allow you to track different combinations of vehicle parameters at the push of a button.
- Transflective LCD Backlit display provides guaranteed visibility in bright sunlight and complete darkness.
- Playback Recording mode provides up to 2 hours (or 15 runs) of continual dash sensor input data to be saved to memory for later review and analysis
- Monitors and displays: RPM, Speed, Oil Pressure, Oil Temperature, Water Temperature, Voltage, & Fuel Pressure.
- Dimensions - 8.3" Wide x 5.2-1/16" High x 1.4" Deep
- Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
- Includes oil pressure, water temperature, oil temperature , and fuel pressure sensors
- Display features digital values for vehicle parameters and configurable text warning messages
- Built-in warning and shift light LEDs
- Optional shift light output, single stage or progressive shift light
- Configurable for engines from 1-12 cylinders
- Programmable Speed input
- IP67 sealed
The AutoMeter Race display systems are designed specifically for the harshest environments. The carbon composite housing is IP67 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. The analog pointer provides a quick and clear display for engine RPM while the digital display layout is configurable using preconfigured sensor inputs using multiple pages for your axillary instrumentation needs. User definable warnings display across the digital display and illuminate the warning LED placed to the side of the tachometer to alert the driver to critical information. Record and play back your run right on the face of the dash display.
Optimal Instrumentation
When you're ready to put the best available instruments in your vehicle, don't settle for slow, inaccurate factory equipment. Choose Auto Meter in-dash tachs and speedos with high-performance movements and seamless dash mounts for the ultimate driver data center. Auto Meter Pro-Comp Pro Dash Displays are available in several configurations and sizes to accommodate diverse applications.
Show More
Features:
- Full Sweep, Stepper Motor Meter Movement
- Resettable Trip Odometer
- User Programmable Warning Function
- Peak Recall
- Programmable Warning Light, LCD Message for Temperatures, Pressures, and Battery Voltage
- Programmable Fuel Level Compatible With Most Fuel Level Sensors
- Integrated Programmable Low Fuel Warning Light
- Operates on Most 1-16 Cylinder Engines with 12V Electronic Ignition
