Vehicle Info NeededAUTO METERPART NUMBER: 105-6013

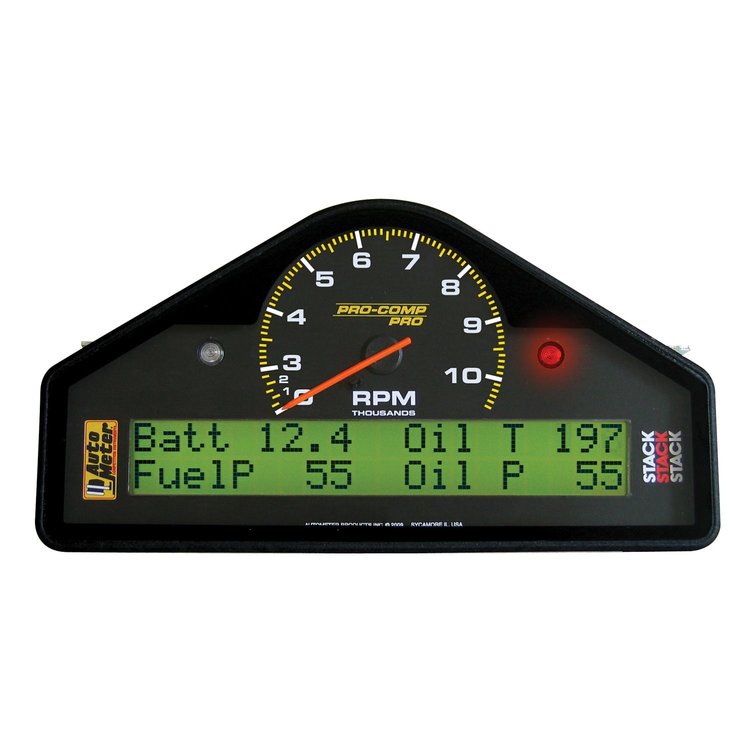

Pro-Comp Pro Race Dash Display Dual Range RPM: 0-3-10K
$1,70999
Ships on 09/10/2026
Lowest Price GuaranteeRace Dashes
- Pro-Comp Pro Race Dash Display
- Dual Range RPM: 0-3-10K
- Speed MPH: 200+
- Oil Press: 0-150 psi
- Oil Temp: 0-300ºF
- Water Temp: 0-300ºF
- Fuel Pressure: 0-150 psi
- Battery Voltage: 8-18v
- Full Sweep, Stepper Motor meter movement.
- Includes 1/8" NPT Sender.
- If mounting temperature sender in a steel fluid pan, use Auto Meter #105-2260
- User Programmable Warning Function
- Peak Recall
- Powered by advanced circuit designs for improved electrical noise resistance and precision.
- Integrated programmable warning light and LCD message display for temperatures, pressures, and battery voltage.
- External plugs provided for shift and warning light activation.
- Dimensions: 7.5" W x 4" H x 2.125" D (to back of MIL connector)
- Includes robust professional wiring harness pre-terminated with mil spec and MSS connectors for ease of installation.
- Operates on most 1-16 cylinder engines with 12V electronic ignitions. Some applications may require DIS Tach Adapter #9117.
- Water, Dust/Dirt, Shock, and Vibration Proof! Fully sealed to IP67 standard.
- Includes white LED backlighting.
- Multiple pre-programmed display layers allow you to track different combinations of vehicle parameters at the push of a button.
- Transflective LCD Backlit display provides guaranteed visibility in bright sunlight and complete darkness.
- Playback Recording mode provides up to 2 hours (or 15 runs) of continual dash sensor input data to be saved to memory for later review and analysis
- Monitors and displays: RPM, Speed, Oil Pressure, Oil Temperature, Water Temperature, Voltage, & Fuel Pressure.
- Dimensions - 8.3" Wide x 5.2-1/16" High x 1.4" Deep
- Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
- Includes oil pressure, water temperature, oil temperature , and fuel pressure sensors
- Display features digital values for vehicle parameters and configurable text warning messages
- Built-in warning and shift light LEDs
- Optional shift light output, single stage or progressive shift light
- Configurable for engines from 1-12 cylinders
- Programmable Speed input
- IP67 sealed
The AutoMeter Race display systems are designed specifically for the harshest environments. The carbon composite housing is IP67 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. The analog pointer provides a quick and clear display for engine RPM while the digital display layout is configurable using preconfigured sensor inputs using multiple pages for your axillary instrumentation needs. User definable warnings display across the digital display and illuminate the warning LED placed to the side of the tachometer to alert the driver to critical information. Record and play back your run right on the face of the dash display.
Part TypeGauge
BrandAUTO METER
Package Height4.0
Package Width10.3
Package Length12.9
Weight3.96 PG
Part CategoryPerformance Parts
Warning Lights IncludedYes
Gauge Face ColorBlack/Luminescent green
Bezel ColorBlack
Size7.5 W x 4 H x 1-1/2 D
Fuel Pressure Gauge IncludedYes
Water Temperature Gauge IncludedYes
Clock IncludedNo
Bezel FinishBlack
Boost Gauge IncludedNo
Ammeter Gauge IncludedNo
Mounting Bracket IncludedNo
Gauge StyleAuto Meter Pro-Comp Pro
Gauge Number ColorWhite
Voltage Gauge IncludedYes
Oil Temperature Gauge IncludedYes
Transmission Temperature Gauge IncludedNo
Lighting TypeLED
Bezel StyleStack
QuantitySold as a kit
Fuel Level Gauge IncludedNo
Dial (Face Color)Black
Pyrometer Gauge IncludedNo
Tachometer Gauge IncludedYes
Pointer ColorFluorescent Red
Gauge SeriesAnalog/Digital
Speedometer Gauge IncludedYes
Oil Pressure Gauge IncludedYes
Part FitmentUniversal
Lighting ColorWhite
Vendor Part Number6013
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
