Vehicle Info NeededAUTO METERPART NUMBER: 105-6400

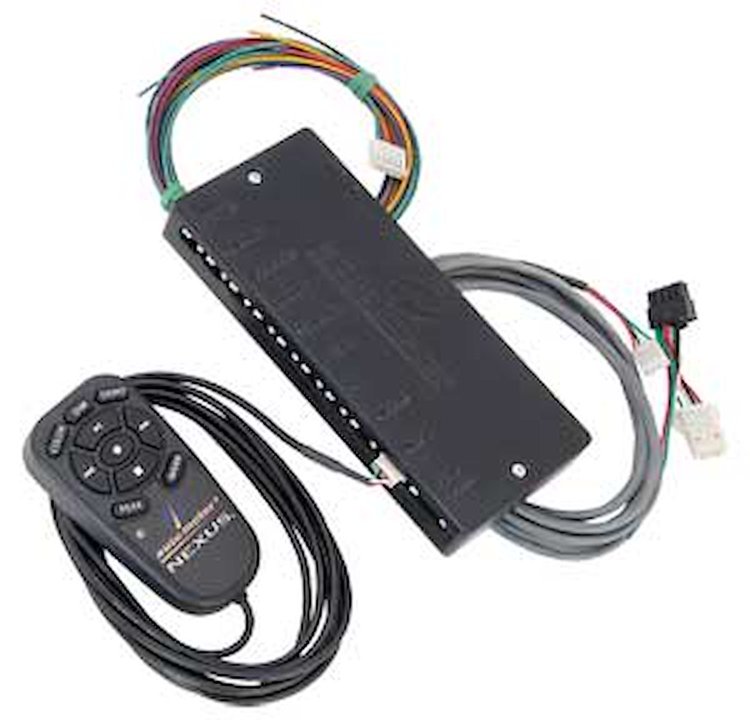

n1.0 Nexus Network System Module Sensor module with remote
$27799
Ships on 09/11/2026
Lowest Price GuaranteeGauge Network Modules
- n1.0 Nexus Network System Module
- Sensor module with remote
- Required for most Nexus gauges
- Tinted Lens Gives Interior Low Key Appearance
- Provides Excellent Visibility
- Compliments Any Interior Scheme
- 1 Year Limited Warranty
- Initialization/shutdown sequences for proper start-up and to zero gauges at shutdown
- Seven LED colors (green, blue, yellow, red, orange, purple,
and white) with a color-changing sequence option - Tinted lens for low-key appearance when gauges are off
- 270° needle sweep
- Programmable full-dial alert warnings (e.g. if you set the boost gauge limit to 25, the face color changes once 25 is reached)
- Record and playback data using the n1.0 Module (required for gauge operation, sold separately)
- Module is SD card compatible, allowing 11 minutes of data per megabyte
- Downloadable SD card data provides graphs on a PC to evaluate and enhance performance
- Handheld remote control included with module
- Virtual gauge playback using the n1.0 software
n1.0 Software
Built in to the Nexus Gauge Network System Module, the n1.0 software is available for unlimited use the first 30 days of operation. After that for future use, the software must be purchased directly from Auto Meter, at which time you'll receive an access code to key in the module for software reactivation. The module has a proprietary digital communications network between gauges for easy setup, and it uses a single cable connection for simple installation and expandability. Reading recall and recording memory provide continuous peak data up to 35 seconds for each gauge on the n1.0 network.
The next generation of
high-performance gauges
Nexus Gauges are the solution for just about any custom interior, complete with features that any show touring or race car could use.
)
Part TypeGauge Control Module
Product LineAuto Meter Nexus Gauges
BrandAUTO METER
Package Height3.8
Package Width5.3
Package Length6.9
Weight1.1 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
