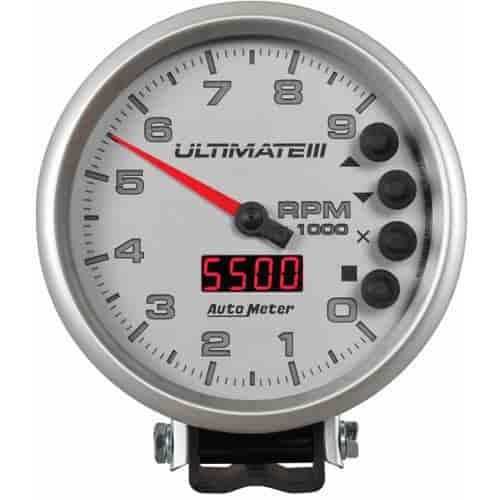

Vehicle Info NeededUltimate III Tachometer 9,000 RPM
Ships on 09/08/2026
Lowest Price Guarantee- Ultimate III Tachometer
- 9,000 RPM
- Silver Face
- USB Output
- 4-Stage Shift Light
- 3 Axis G Meter Download
- Up to 60 seconds recording time
- Pause, Reverse, and Fast Forward
- Sampling Rate: 100 times per second
- Matrix display for superior information exchange
- Designed for serious bracket and sportsman racers
- Record both engine and driveshaft RPM to replay on the tachometer or to download to a computer using the included software
- NHRA Competition legal
- Compatible with 0.5 - 6 pulse ignition signals (1-12 cylinder engines) with points, electronic, and most 12V high-performance racing ignitions.
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Optimize use of your engine's power band and improve vehicle run performance and driver gear changes with an optional rapid response, high visibility user-programmable 4-stage shift light.
- Monitor and record Engine and Driveshaft RPM to analyze wheelspin, clutch slip, coverter lock up, gear changes and more!
- Includes award winning DataPro analysis software
- Download data to your PC via USB
- Comparative run overlay allows you to compare current to best runs and see what happened not only when, but where!
AutoMeter Ultimate playback tachometers have helped drag racers trip the win lights for decades by providing the necessary data to protect engines, fine tune and diagnose clutch and converter strategies, nail shift points and improve launch consistency. The latest Ultimate III design is engineered to be the best version yet with a comprehensive feature set suitable for beginners through more advanced data users offering both direct data playback as well PC analysis capabilities out of the box. Built around AutoMeter's responsive competition grade movements, the Ultimate III is capable of tracking the fastest revving engines with 0-11k RPM sweep time of just 333 milliseconds. 30% lighter than the Ultimate II designs which they replace, Ultimate III tachometers still come packed with features. Record and playback up to 4 runs (60 sec. ea.) worth of engine and driveshaft RPM data or download high resolution (100 Hz) data to our easy to use DataPro software for more advanced analysis. 4 Stage shift light control is standard and a new and improved ARMS (automatic recording memory start) system makes for worry-free driver operation. The latest LED technology provides superior visibility, shock and vibration resistance while reducing power consumption requirements and expanded cylinder selection means they support more applications than ever before!
